TYK+ 30 ELL

TYK+ 30 ELL
TYK+ 30 ELL
TYK+ 30 ELL
TYK+ 30 ELL
TYK+ 30 ELL - 1
TYK+ 30 ELL - 2
TYK+ 30 ELL - 3
TYK+ 30 ELL - 4
TYK+ 30 ELL - 5
Part number 078068
Lampholder: LED
Wattage: 85 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP66
CRI: 80
Kelvin: 3000
Optic: Elliptical - ELL
Beam angle: 35°x65°
Nema Type: 5H x 5V
IESNA Type: Type I
BUG Rating: B3-U0-G0
Luminaire lumen output [lm]: 4446 lm
L: L90
B: B10
Lifetime: 50000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -40
Max. ambient temperature [°C]: 45

Description

  • Long-lasting floodlighting for landscape and any architecture, also applying dynamic color. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing, and adjustable stainless steel mounting bracket.
  • - Stainless steel graduated ferrules for aiming purposes on both sides of the fixture.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - Elliptical optics (ELL).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Standard tear-proof nickel-plated brass cable gland M20x1.5 for cables Ø0.4” - Ø0.55”.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

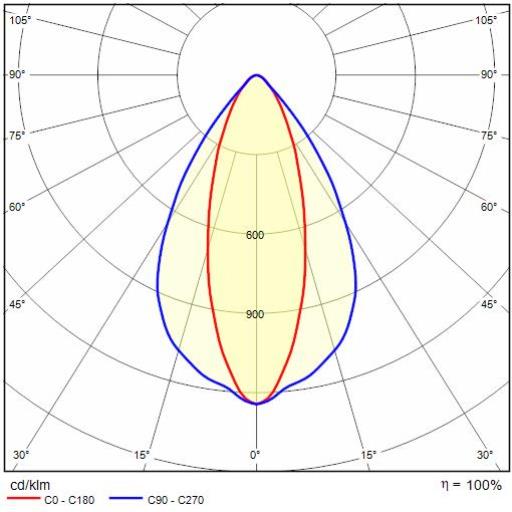

Photometric data

Technical drawings

Tech Design TYK+ 30 ELL 1++

OPTIONAL ACCESSORIES

Wall mount

07959
JBox cover plate - Iron gray
Anthracite gray
DownloadDownloads

Documentation: DU00223 - 07959

Surface mount

3108558
Extra rotation bracket +55°/-90°
Stainless steel
DownloadDownloads

Documentation: DU00223 - 3108558

Pole mount

3107473
Two-axis rotation bracket for gliding support
Stainless steel
DownloadDownloads

Documentation: DU00223 - 3107473

14099696
Gliding support made of painted aluminium for the installation on Ø 3 9/16" / Ø 90 mm posts
Anthracite gray
71408353
Pole 8’ Ø 3.5”
Anthracite gray
71410353
Pole 10' Ø 3.5"
Anthracite gray
71412353
Pole 12' Ø 3.5"
Anthracite gray
71414353
Pole 14' Ø 3.5"
Anthracite gray
71416353
Pole 16' Ø 3.5"
Anthracite gray
