NIKKO+27 LED

IN
NIKKO+27 LED
NIKKO+27 LED - 1
Part number 079210
Lampholder: LED
Wattage: 22 W
Finishing: WH-87 / White / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 4000
Optic: Symmetric Extra-Wide
Luminaire lumen output [lm]: 1309 lm
L: L80
B: B10
Lifetime: 94000 h
Voltage: 120/277 V

Description

  • Surface-mount doorway and hallway lights and post mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free die-cast aluminum housing, ring, and faceplates.
  • - Copper-free aluminum extruded post.
  • - High transmittance, internally coated, pressed glass diffuser, thermally, and chemically quenched to strengthen the impact resistance and reduce the effect of rapid temperature changes.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - 100% uniform diffused light emission.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Wall bracket and post accessories available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - 5-year warranty.
  • - Product meets Buy American Act (BAA) requirements within ARRA.

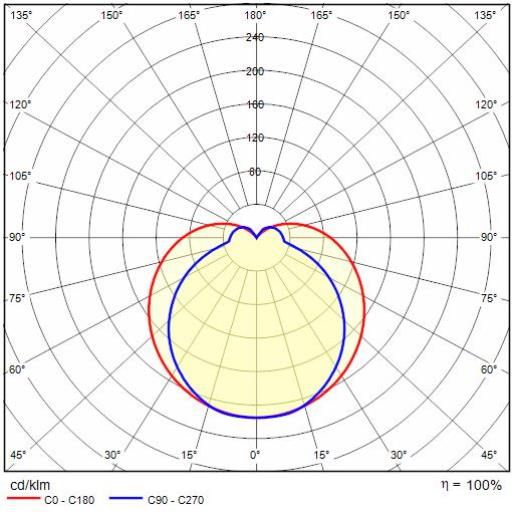

Photometric data

Photometric Lvk NIKKO+27 LED 1

Technical drawings

Tech Design NIKKO+27 LED

OPTIONAL ACCESSORIES

NIKKO+27 - Bracket

Bracket
420
Bracket
White

NIKKO+27 - Post h 10.43"

Post h 10.43"
424
Post h 10.43"
White

NIKKO+27 - Post h 32.79"

Post h 32.79"
428
Post h 32.79"
White

NIKKO+27 - Post h 48.54"

Post h 48.54"
432
Post h 48.54"
White
