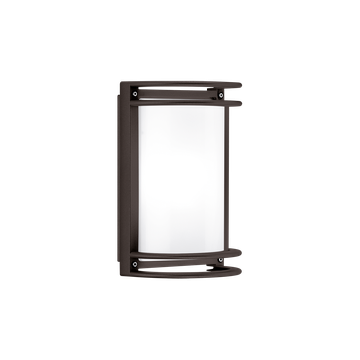

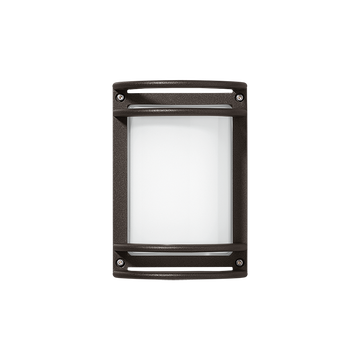

NIKKO+27 LED

IN
NIKKO+27 LED
NIKKO+27 LED - 1
Part number 079216
Lampholder: LED
Wattage: 22 W
Finish: RB-10 / IRON RUST / TEXTURED
Degree of protection: IP 65
Kelvin: 4000
Optic: SYMMETRIC EXTRA WIDE REFLECTOR
Luminaire lumen output: 903 lm
L: L80
Lifetime: 50000 h
Voltage: 120/277V

Description

  • Surface-mount doorway and hallway lights and post mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free die-cast aluminum housing, trim and faceplates.
  • - Copper-free aluminum extruded post.
  • - Hi-light transmittance, internally coated, soda-lime pressed glass diffuser, physically and chemically quenched to increase thermal shocks and mechanical resistance.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB combined with an optimized passive cooling system provides a long LED life.
  • - 100% uniform diffuse light emission.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Wall bracket and post accessories available (to be ordered separately).
  • - Consult factory for dimming options, custom finishes and non-catalogued CCT (Kelvin) options.
  • - 5-year warranty.
  • - Product meets Buy American requirements within ARRA.

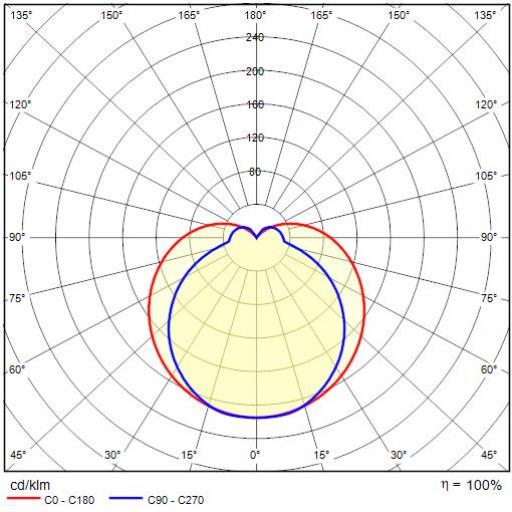

PHOTOMETRIC DATA

Photometric Lvk NIKKO+27 LED 1

TECHNICAL DRAWINGS

Tech Design NIKKO+27 LED

OPTIONAL ACCESSORIES

NIKKO+27

Bracket 27
423
Bracket 27
IRON RUST
Post 27 h10,43"
427
Post 27 h10,43"
IRON RUST
Post 27 h 32.79"
431
Post 27 h 32.79"
IRON RUST
Post 27 h 48.54"
435
Post 27 h 48.54"
IRON RUST
