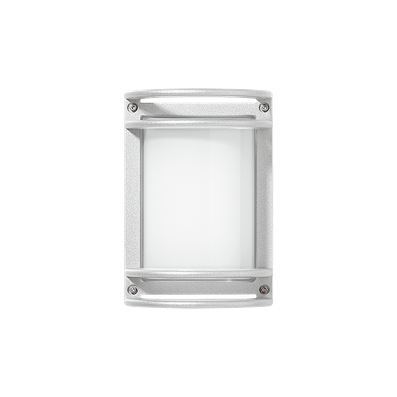

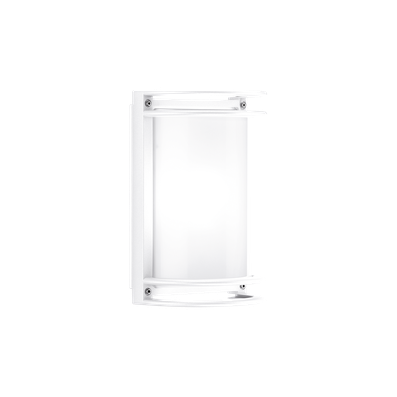

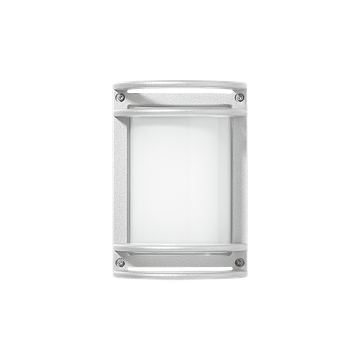

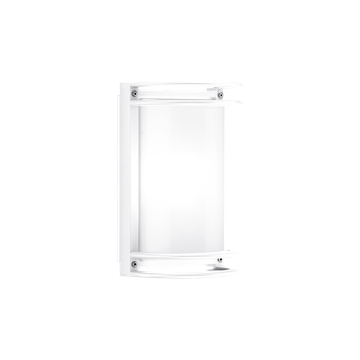

NIKKO+27 LED

IN
NIKKO+27 LED
NIKKO+27 LED
NIKKO+27 LED - 1
NIKKO+27 LED - 2
Part number 079604
Lampholder: LED
Wattage: 22 W
Finishing: WH-87 / White / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 3000
Optic: Symmetric Extra-Wide
Luminaire lumen output [lm]: 1248 lm
L: L80
B: B10
Lifetime: 94000 h
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 30

Description

  • Surface-mount doorway and hallway lights and post mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) die-cast aluminum housing, ring, and faceplates.
  • - Copper-free (<1%) aluminum extruded post.
  • - High transmittance, internally coated, pressed glass diffuser, thermally, and chemically quenched to strengthen the impact resistance and reduce the effect of rapid temperature changes.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - 100% uniform diffused light emission.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Wall bracket and post accessories available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - 5-year warranty.
  • - Product meets Buy American Act (BAA) requirements within ARRA.

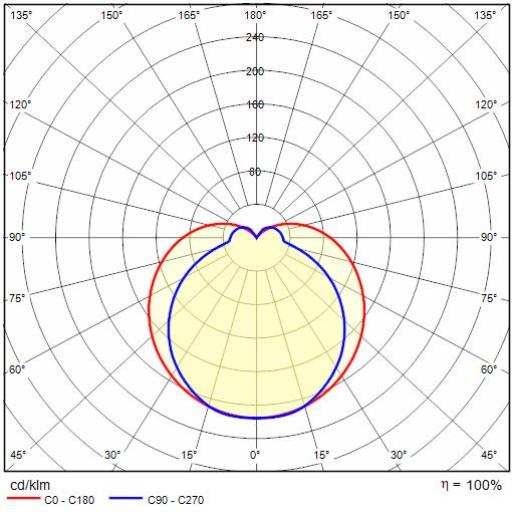

Photometric data

Technical drawings

Tech Design NIKKO+27 LED 1++

OPTIONAL ACCESSORIES

NIKKO+27 - Bracket

420
Bracket
White
DownloadDownloads

Documentation: NIKKO+27 - 420

NIKKO+27 - Post h 10.43"

424
Post h 10.43"
White
DownloadDownloads

Documentation: NIKKO+27 - 424

NIKKO+27 - Post h 32.79"

428
Post h 32.79"
White
DownloadDownloads

Documentation: NIKKO+27 - 428

NIKKO+27 - Post h 48.54"

432
Post h 48.54"
White
DownloadDownloads

Documentation: NIKKO+27 - 432
