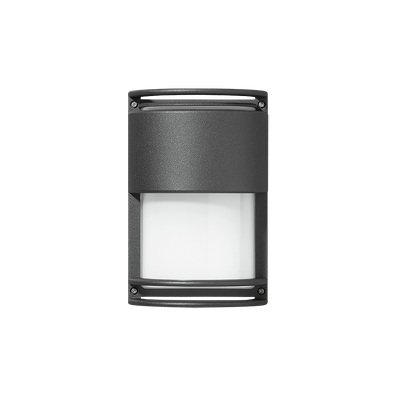

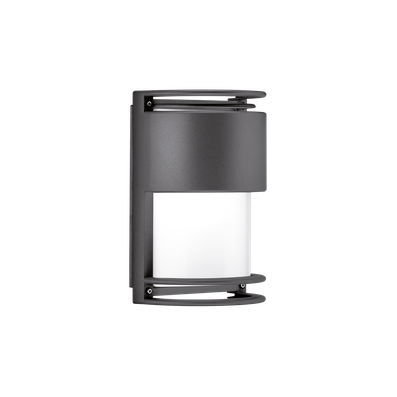

NIKKO+27/V LED

IN
NIKKO+27/V LED
NIKKO+27/V LED
NIKKO+27/V LED
NIKKO+27/V LED - 1
NIKKO+27/V LED - 2
NIKKO+27/V LED - 3
Part number 079624
Lampholder: LED
Wattage: 22 W
Finish: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 3000
Luminaire lumen output: 508 lm
L: L80
Lifetime: 50000 h
Voltage: 120-277 V

Description

  • Surface-mount doorway and hallway lights and post mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free die-cast aluminum housing, ring, and faceplates.
  • - Copper-free aluminum extruded post.
  • - High transmittance, internally coated, soda-lime pressed glass diffuser, thermally and chemically quenched to strengthen the impact resistance and reduce the effect of rapid temperature changes.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - 100% uniform diffused light emission.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Wall bracket and post accessories available (ordered separately).
  • - Consult factory for dimming options, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options.
  • - 5-year warranty.
  • - Product meets Buy American Act requirements within ARRA.

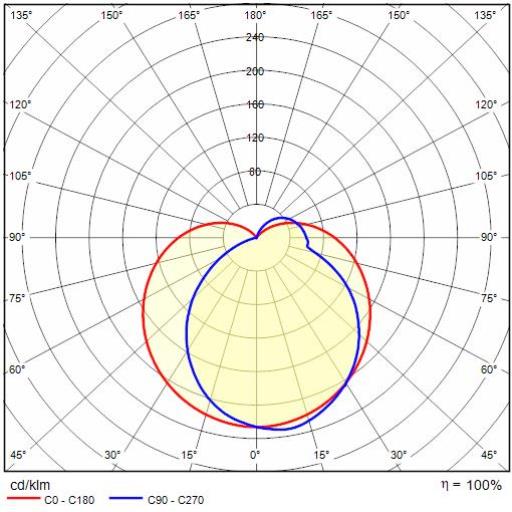

Photometric data

Photometric Lvk NIKKO+27/V LED 1

Technical drawings

Tech Design NIKKO+27/V LED

OPTIONAL ACCESSORIES

NIKKO+27 - Post h 10.43"

Post h 10.43"
426
Post h 10.43"
Iron gray

NIKKO+27 - Post h 32.79"

Post h 32.79"
430
Post h 32.79"
Iron gray

NIKKO+27 - Post h 48.54"

Post h 48.54"
434
Post h 48.54"
Iron gray

NIKKO+27 - Bracket

Bracket
422
Bracket
Iron gray
