ACRO PRO EQ236 MULTIPOWER

ACRO PRO EQ236 MULTIPOWER - 1

ACRO PRO EQ236 MULTIPOWER

Part number 3114691

Weatherproof LED luminaire, comprising:
- Fibreglass reinforced polyester housing
- Diffuser in frosted polycarbonate, glow wire 850 °C (EN 60695-2-11)
- Anti-ageing custom moulded silicone sealing gasket(s)
- 4000K multi-chip LED board
- Fully integrated stainless steel safety spring clips
- Quick ceiling fixing bracket (stainless steel)
- Integral Dip-Switches to select one of four power levels, which can be field adjusted (MULTIPOWER models)
- Emergency - 1 hour
- EM/1P are maintained emergency versions (1h)
- Hyper-frequency (HF) sensor operating at 5.8 Ghz+/- 75 Mhz
- Dimmable DALI

Documentation

Documentation

Technical Datasheets

Instruction sheets

Tender Text

2D / 3D

Technical drawing .jpg

Photometric data

Photometric file .ies

Photometric file .ldt

Polar Diagram .jpg

RELUX .rolf

DIALUX .uld

Download

Select items to download

Wishlist

Add selected items to my portfolio

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

3200/3950/4750/5350

Luminaire lumen output
[lm]:

2923/3598/4343/4981

Luminaire
wattage [W]:

18/22.5/27.5/31 W

Luminous efficacy [lm/W]:

162

CRI:

80

Colour
temperature [K]:

4000

Colour /
Finishing:

GR-RAL7035 / Grey RAL7035 / Matt

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK08 5J xx5

Protection class:

I

Optic:

S/EW - Symmetric Extra-Wide

Net weight [kg]:

1.854

Overall length [mm]:

1174

Overall width [mm]:

102

Overall height [mm]:

80

Mechanical features

Shape:

Rectangular

Housing material:

Plastic

Diffuser material:

Plastic

Glow wire test [°C]:

850 °C

Electrical features

Voltage type:

AC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

0.98

Inrush current [A/μs]:

22 / 220

C10 1.5 mm²:

33

C16 2.5 mm²:

54

B10 1.5 mm²:

22

B16 2.5 mm²:

34

Installation

Application area:

Indoor

Mounting type:

Waterproof

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

40

Light features

MacAdam:

3

Lumen maintenance:

L70B10@101000h

Distribution of light emission:

Direct

Photometric data

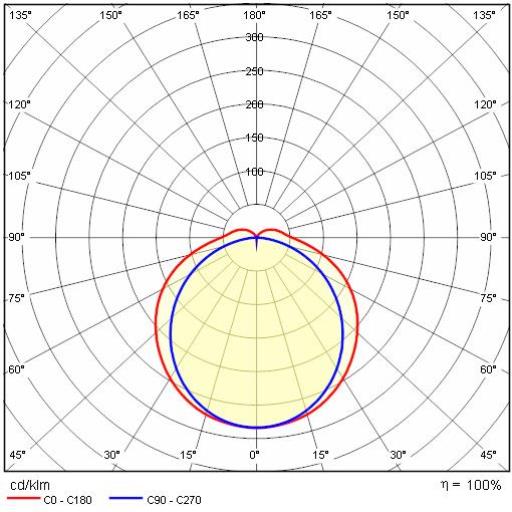

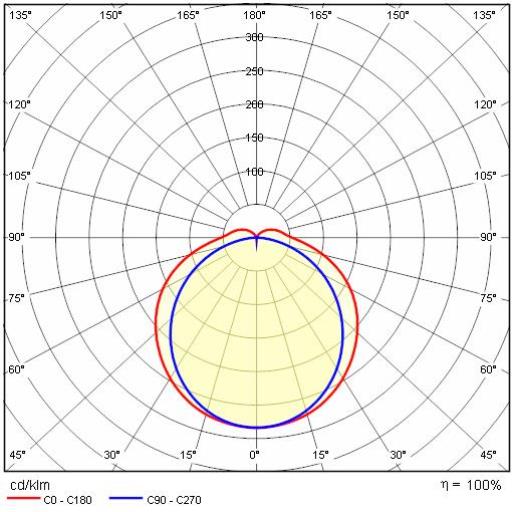

Photometric Lvk ACRO PRO EQ236 MULTIPOWER 1

Photometric Lvk ACRO PRO EQ236 MULTIPOWER 2

Photometric Lvk ACRO PRO EQ236 MULTIPOWER 3

Photometric Lvk ACRO PRO EQ236 MULTIPOWER 4

Technical drawings

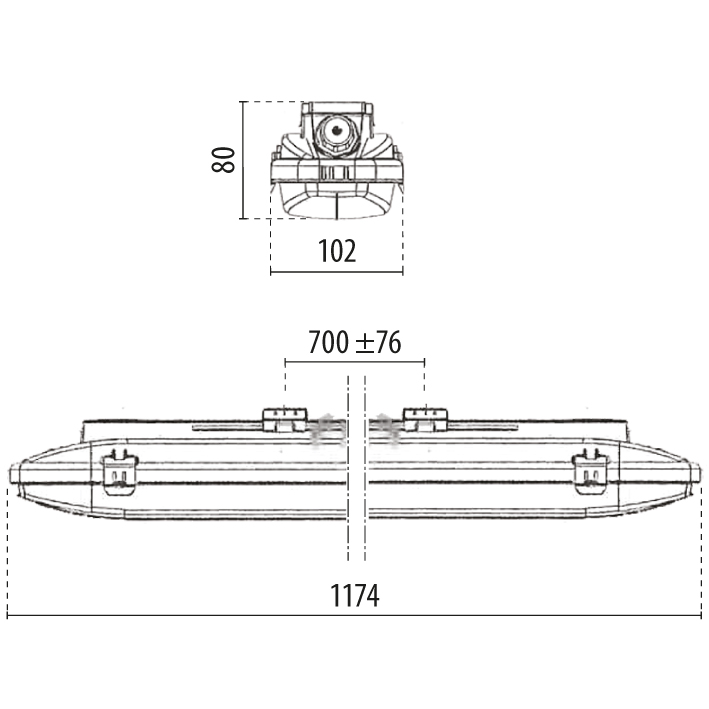

Tech Design ACRO PRO EQ236 MULTIPOWER 1++
