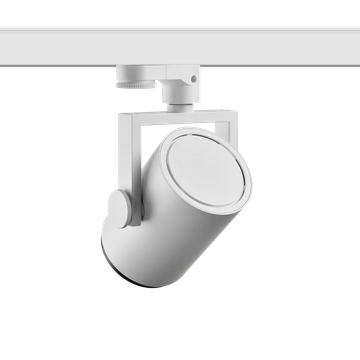

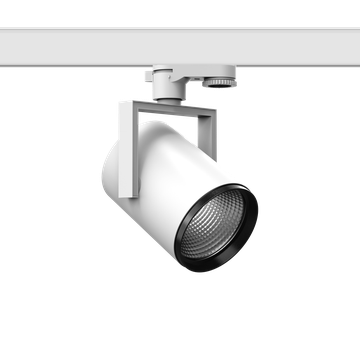

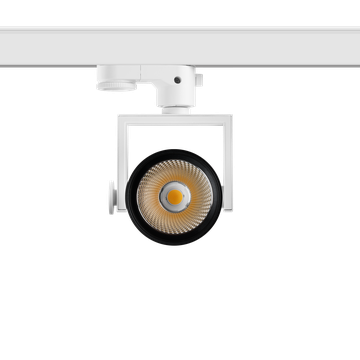

AS425 LED WIDE FLOOD REFLECTOR

Part number 3108426

LED track light for indoor, comprising:
- Extruded aluminium profile and die-cast aluminium spotlight housing, powder-coated
- Tilting and turning spotlight head
- High-brilliance spherical faceted reflector for maximum performance and neutral colour rendering index
- Bayonet-closure ring for a toolless replacement of the reflector and the louvre
- Reflector in Wide Flood design
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Universal tri-phase adaptor included
- Built-in driver
- Quick and toolless installation
- Clear safety glass
- The luminaire is suitable for installation on standard tracks such as EUROSTANDARD PLUS®

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

2580

Luminaire lumen output
[lm]:

2180

Luminaire
wattage [W]:

20 W

Luminous efficacy [lm/W]:

109

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

WH-RAL9010 / White RAL9010 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK02 0.2J xx0

Protection class:

Optic:

C/MW - Circular Medium-Wide

Beam
angle:

2 x 33°

Net weight [kg]:

1.056

Overall diameter [mm]:

Overall length [mm]:

260

Overall width [mm]:

Overall height [mm]:

208

Mechanical features

Shape:

Round ≤ 150 mm

Housing material:

Aluminium

Diffuser material:

Transparent glass

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

10 / 34

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

EEI:

Installation

Application area:

Indoor

Mounting type:

Track lights

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

0.10

Light features

MacAdam:

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

UGR max.:

21.8

Photometric data

Photometric Lvk AS425 LED WIDE FLOOD REFLECTOR 1

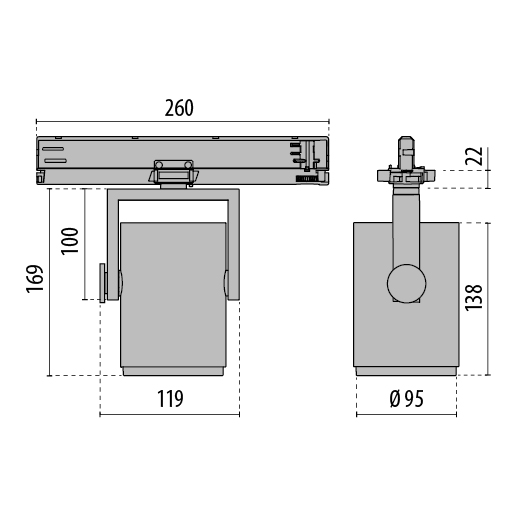

Technical drawings

Tech Design AS425 LED WIDE FLOOD REFLECTOR 1++
