DL ROUND MIDI

Part number 3108961

Recessed, modular, LED downlight for indoor, comprising:
- LED module, die-cast aluminium heat sink, reflector with integrated ceiling trim, diffuser and external supply unit
- All components can be tool-less replaced lately
- Integrated diffuser grants an optimised uniformity
- Die-cast aluminium heat sink with Fast™ (Flexible air stream technology) cooling system grants an excellent dissipation and thermal management
- Built-in driver
- Emergency 1h
- Emergency 3h
- Suitable for ceiling tile thickness from 1-25 mm
- Quick and toolless installation
Options:
- High-shine modular radial louvre reflector with integrated ceiling frame made of metallised injection-moulded ABS with light-tight connection to LED module
- Injection-moulded ABS reflector with integral ceiling trim with light-tight connection to LED module and matte plastic pane (IP54)

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1500

Luminaire lumen output
[lm]:

1280

Luminaire
wattage [W]:

9 W

Luminous efficacy [lm/W]:

142

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

SL-10 / Silver / Textured

IP degree
of protection:

IP20

IP above/below ceiling:

IP20/IP44

Impact resistance / impact energy:

IK07 2J xx5

Protection class:

Optic:

C/EW - Circular Extra-Wide

Beam
angle:

2 x 41°

Net weight [kg]:

1.769

Overall diameter [mm]:

190

Overall height [mm]:

Cut-out diameter [mm]:

Ø 175

Minimum installation depth [mm]:

Mechanical features

Shape:

Round 150 ≤ x ≤ 300 mm

Housing material:

Aluminium

Diffuser material:

Opal plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

0/50/60

Power factor / COS Φ:

>0.9

Input voltage [V DC]:

176/280

Inrush current [A/μs]:

15 / 204

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Indoor

Mounting type:

Downlight and spotlight

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct

UGR max.:

20.0

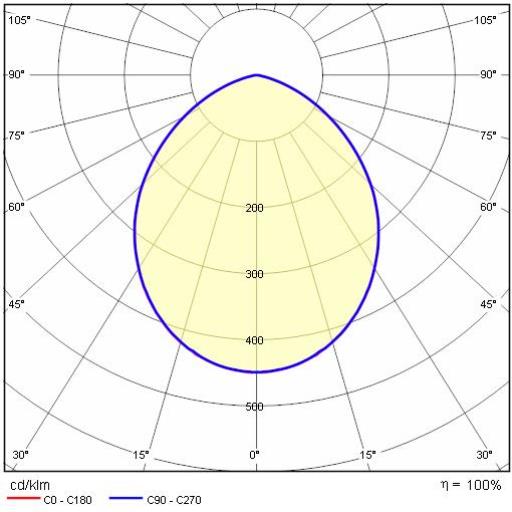

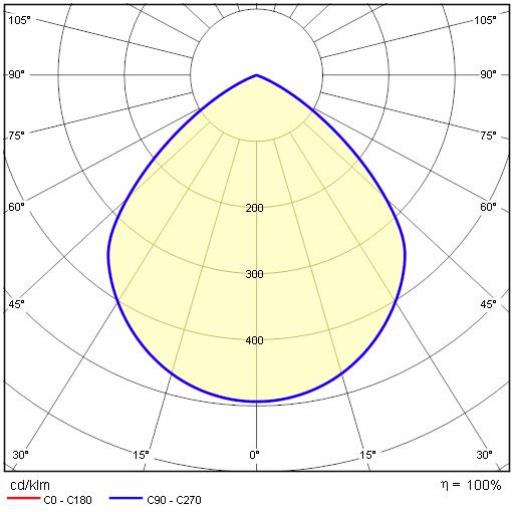

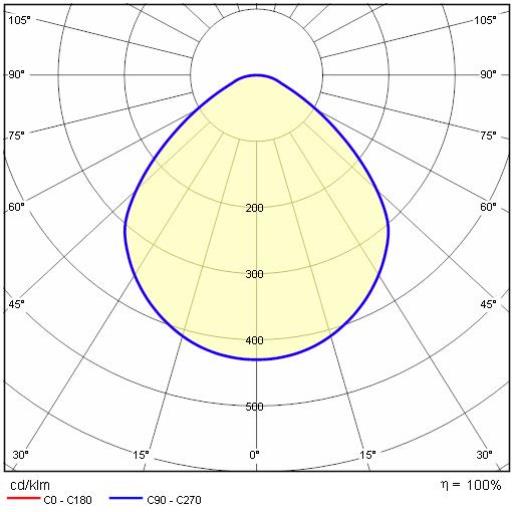

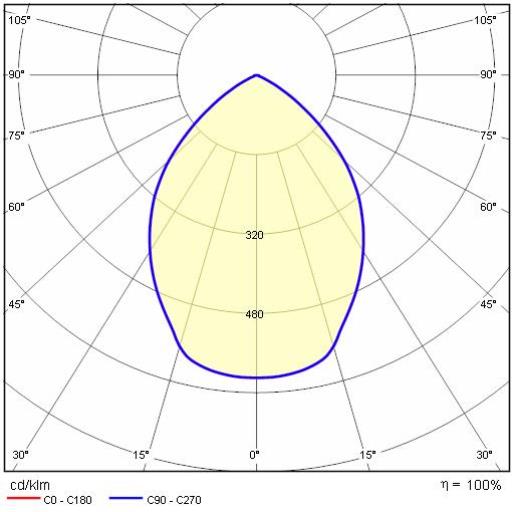

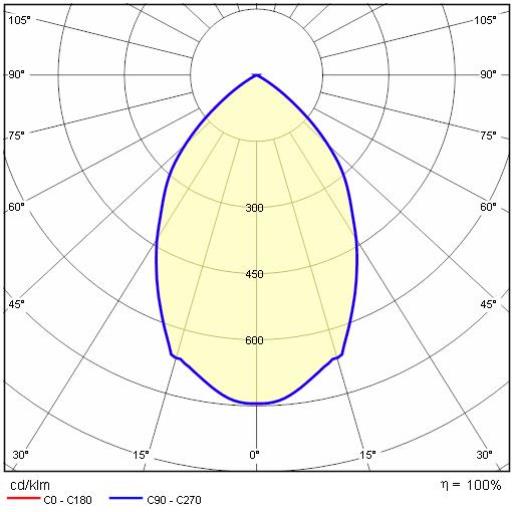

Photometric data

Technical drawings

Optional accessories

DL ROUND MIDI

Part number	Description	Downloads
3109006	White reflector DL ROUND MIDI	Add to technical datasheetRemove from technical datasheet
3109007	Black reflector DL ROUND MIDI	Add to technical datasheetRemove from technical datasheet
3109008	Louvre reflector DL ROUND MIDI	Add to technical datasheetRemove from technical datasheet
3109009	Matte plastic panel (IP54) DL ROUND MIDI	Add to technical datasheetRemove from technical datasheet
