ELA 600 PR

Part number 3116604

LED recessed luminaire, consisting of:
- Extruded aluminium profile, powder-coated mounting frame
- Prismatic technopolymer diffuser
- UGR<19
- Remote ON/OFF driver included
Options:
- Emergency 3h
- Dimmable DALI options available. Consult factory
- Dimmable 1/10V ballast available. Consult factory

Documentation

Documentation
Technical Datasheets
Instruction sheets
Tender Text

2D / 3D
Technical drawing .jpg

Photometric data
Photometric file .ldt
Photometric file .ies
Polar Diagram .jpg
DIALUX .uld
RELUX .rolf
Select items to download
Send by email
Add selected items to my portfolio

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

4600

Luminaire lumen output
[lm]:

3988

Luminaire
wattage [W]:

32 W

Luminous efficacy [lm/W]:

125

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

WH-87 / White / Textured

IP degree
of protection:

IP40

Impact resistance / impact energy:

IK06 1J xx3

Protection class:

Optic:

S/EW - Symmetric Extra-Wide

Net weight [kg]:

2.858

Overall length [mm]:

595

Overall width [mm]:

595

Overall height [mm]:

Mechanical features

Shape:

Square ≥ 300 mm

Housing material:

Painted steel

Diffuser material:

Plastic

Glow wire test [°C]:

750 °C

Electrical features

Voltage type:

Input voltage [V AC]:

198/264

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

27 / 154

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Indoor

Mounting type:

Ceiling recessed

Min. ambient temperature [°C]:

-30

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@57000h

Distribution of light emission:

Direct

UGR max.:

18.0

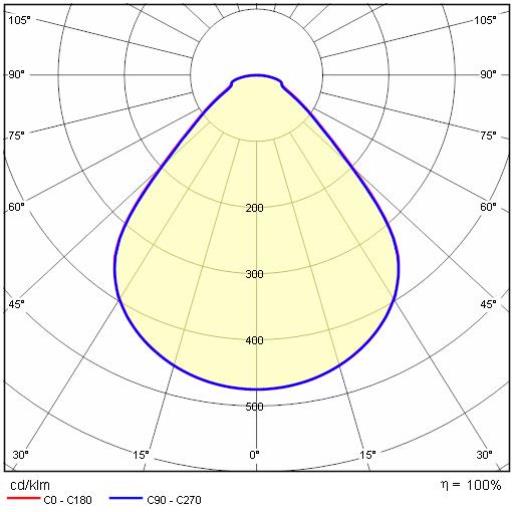

Photometric data

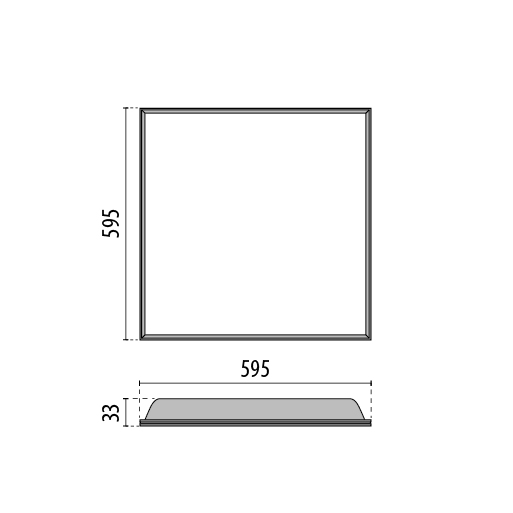

Technical drawings

Control gear

ELA 600

	Part number	Colour / Finishing	Description	Downloads
	19-02565		Driver 36 W DALI	Add to technical datasheetRemove from technical datasheet
	19-02566		Driver 36 W 1-10 V push	Add to technical datasheetRemove from technical datasheet

Optional accessories

ELA 600

	Part number	Colour / Finishing	Description	Downloads
	19-02567		Kit EM3P	Add to technical datasheetRemove from technical datasheet
