ELIA HL M2 120W
ELIA HL M2 120W - 1

ELIA HL M2 120W

Part number GWF1000MH840
  • LED highbay designed for indoor industrial, logistics and tertiary applications, where efficiency, high luminous output, precision and resistance are required
  • - Available in 3 power steps (120 W, 150 W and 200 W) with a standard colour temperature of 4,000 K (neutral white) and a colour rendering index of 80, the range allows for great flexibility with its multiple possible combinations: 3 optics options (60°, 90° and 120° beam angles in polycarbonate lenses) and 2 integrated power supply options (On/Off and DALI)
  • - Thanks to its black powder-coated die-cast aluminium body with incorporated heatsink, it is tough, durable (IP65 and IK08) and able to withstand harsh environmental conditions (such as ambient temperature variations from -30°C to +50°C)
  • - The luminaire can be suspension-mounted through the hook attachment integrated into the upper part of the device

Product data

ETIM Group:
EG000027
ETIM Class:
EC001716

General information

Lampholder:
LED
Light source:
LED
Luminaire lumen output
[lm]:
17900
Luminaire
wattage [W]:
120 W
Luminous efficacy [lm/W]:
149
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
Black RAL 9017 / Black RAL9017
IP degree
of protection:
IP65
IK-J-xxIP:
IK08 5J xx5
Protection class:
I
Optic:
SYMM - Symmetric
Beam
angle:
60°
Net weight [kg]:
3.9
Overall diameter [mm]:
360
Overall height [mm]:
186

Mechanical features

Housing material:
Aluminium
Diffuser material:
Plastic
Glow wire test [°C]:
750 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
100/240
Input frequency [Hz]:
50/60

Installation

Application area:
Indoor
Mounting type:
Hi / low-bay
Min. ambient temperature [°C]:
-30
Max. ambient temperature [°C]:
50

Light features

MacAdam:
5
Lumen maintenance:
L80B50@100000h
Distribution of light emission:
Direct
UGR max.:
0.0

Photometric data

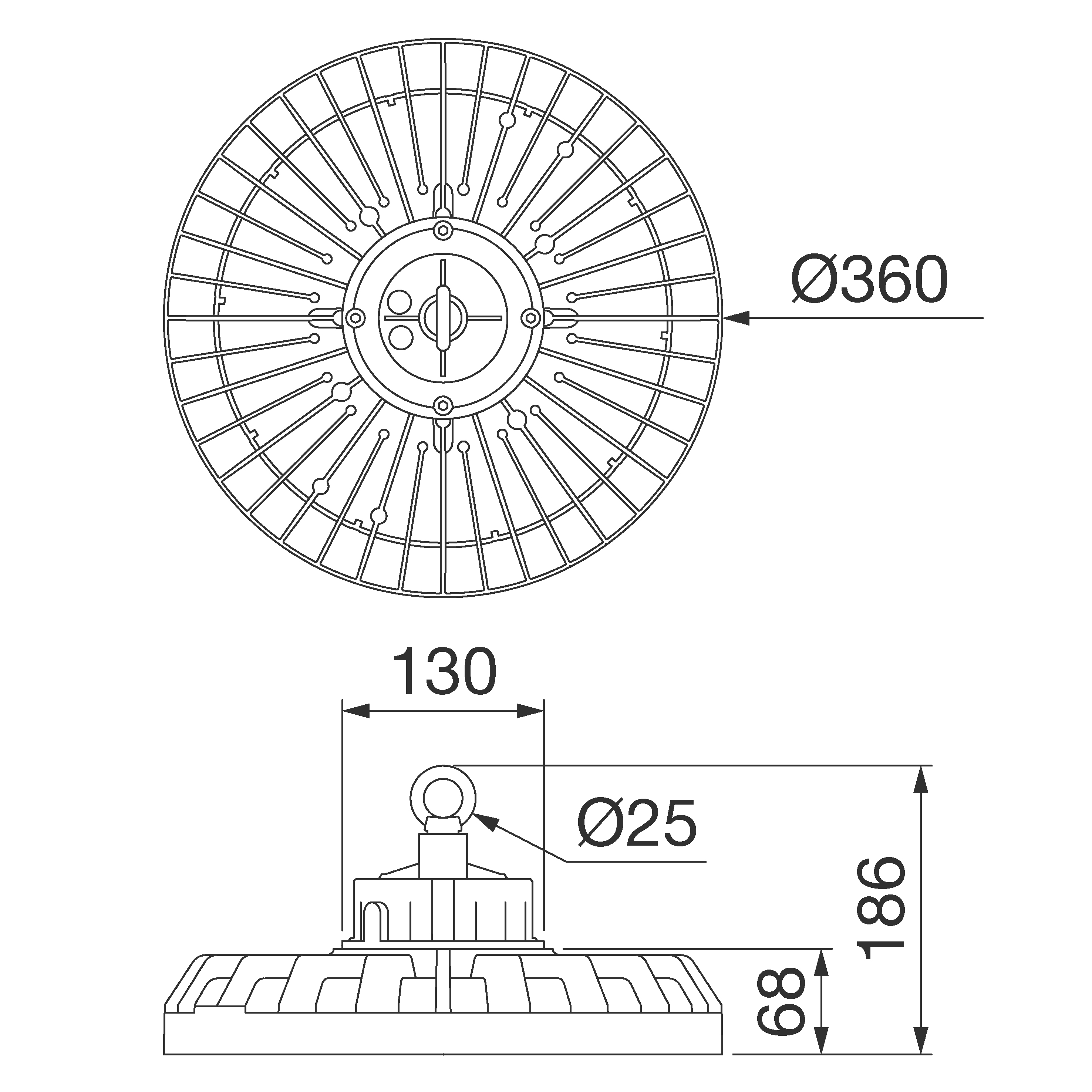

Technical drawings

Tech Design ELIA HL M2 120W 1++
