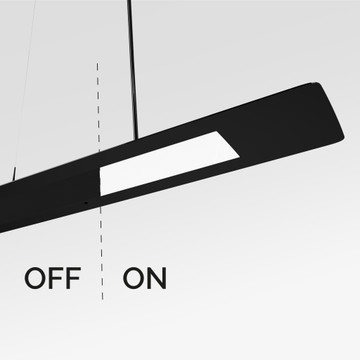

- Luminaire head made from glass with moulded designer cover in a wave shape and moulded technopolymer moulded canopy
- Pendant tube made from metal and cable suspension on one side
- Partially mirrored, black glass with a black ceramic edge (BLACK DRK) and integrated micro prism for efficient light distribution, glare minimisation, and excellent uniformity
- Direct light distribution
- LED Sidelight-Technology for a homogenous light distribution over the entire area of the cover
- Colour tolerance according to MacAdam ≤ 3 SDCM
- DALI dimmable
- VDU application suitable acc. to EN 12464-1
- Special colour versions available. Consult factory
- Pendant tube, cable suspension, supply cable and ceiling canopy included
- Design by WALTER DE SILVA
Product data
ETIM Group:
EG000027
ETIM Class:
EC001743
General information
Lampholder:
LED
Light source:
LED
Lightsource lumen output [lm]:
13100
Luminaire lumen output [lm]:
1850
Luminaire wattage [W]:
95 W
Luminous efficacy [lm/W]:
19
CRI:
80
Colour temperature [K]:
3000
Colour / Finishing:
BK-RAL9005 / Black RAL9005 / Glossy
IP degree of protection:
IP20
Impact resistance / impact energy:
IK04 0.5J xx3
Protection class:
I
Optic:
S/A - Symmetric direct
Beam angle:
2 x 43°
Net weight [kg]:
14
Overall length [mm]:
1753
Overall width [mm]:
347
Overall height [mm]:
1000
Mechanical features
Shape:
Rectangular
Housing material:
Plastic
Diffuser material:
Glass
Glow wire test [°C]:
650 °C
Electrical features
Voltage type:
AC/DC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
220-240V 0/50/60Hz
Power factor / COS Φ:
0.9
EEI:
A1
Installation
Application area:
Indoor
Mounting type:
Suspended
Min. ambient temperature [°C]:
10
Max. ambient temperature [°C]:
40
Light features
MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct
DFF - Downward Flux Fraction [%]:
100
UFF - Upward Flux Fraction [%]:
0
UGR max.:
16.0

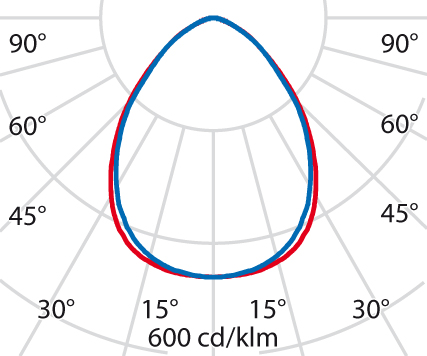

Photometric data
Technical drawings
