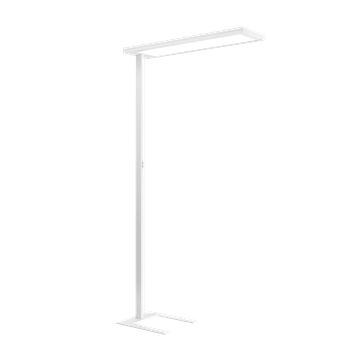

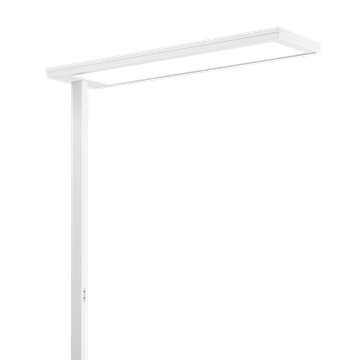

SL740SL XL LED MICROPRISMATIC COVER

Part number 8740761135411

Free-standing (SL) LED luminaire for indoor, comprising:
- Steel sheet head, extruded aluminium profile post, steel sheet base, polyester powder coat finish
- Angle of the lamp head adjustable using a set screw
- Micro-prismatic diffuser for efficient light distribution, glare reduction and high uniformity (MP)
- Direct / indirect light distribution
- Suitable for simultaneous lighting of 2 workstations
- Colour tolerance according to MacAdam ≤ 3 SDCM
- VDU application suitable acc. to EN 12464-1
- Complete with flexible power cord with plug
- Special colour versions available. Consult factory

Documentation

Documentation
Technical Datasheets
Instruction sheets
Tender Text

2D / 3D

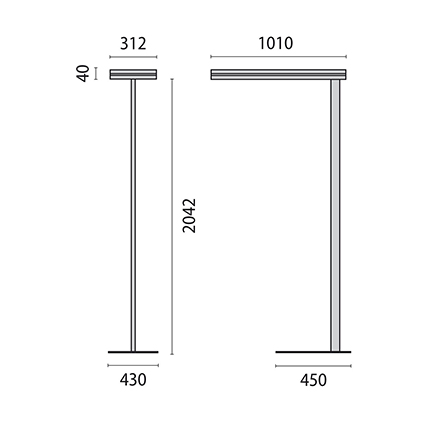

Technical drawing .jpg

Photometric data
Photometric file .ies
Photometric file .ldt

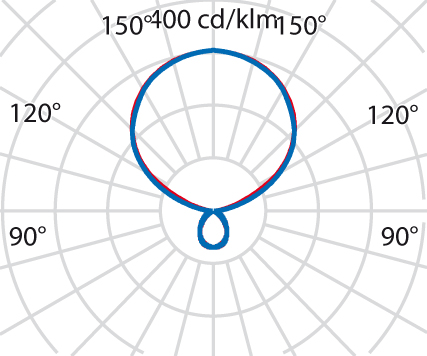

Polar Diagram .jpg
DIALUX .uld
RELUX .rolf
Select items to download
Send by email
Add selected items to my portfolio

Product data

ETIM Group:

EG000027

ETIM Class:

EC000300

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

19000

Luminaire lumen output
[lm]:

15730

Luminaire
wattage [W]:

119 W

Luminous efficacy [lm/W]:

132

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

WH-RAL9016 / White RAL9016 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK07 2J xx5

Protection class:

Optic:

S/D - Symmetric mainly indirect

Beam
angle:

2 x 42°/43°

Net weight [kg]:

Overall length [mm]:

312

Overall width [mm]:

1010

Overall height [mm]:

2082

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 50/60Hz

Power factor / COS Φ:

0.9

Input voltage [V DC]:

176/280

Inrush current [A/μs]:

33 / 280

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

EEI:

Installation

Application area:

Indoor

Mounting type:

Free standing

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct/Indirect

DFF - Downward Flux Fraction [%]:

UFF - Upward Flux Fraction [%]:
