SL764+ PL LV S/C
SL764+ PL LV S/C
SL764+ PL LV S/C - 1
SL764+ PL LV S/C - 2

SL764+ PL LV S/C

Part number 3113760

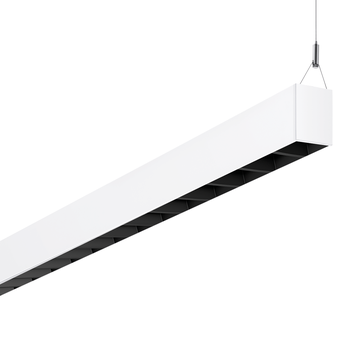

  • Suspended, LED luminaire for indoor, comprising:
  • - Extruded aluminium profile housing, die-cast aluminium end caps, powder-coated

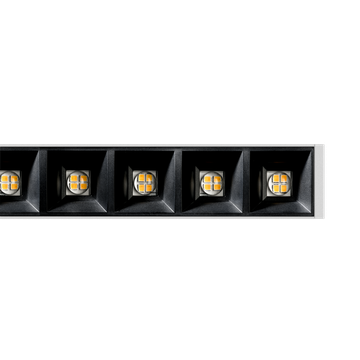

  • - Black grid for maximum luminaire efficiency, glare reduction and a high uniformity
  • - Streamlined, simple design with flush end caps
  • - High-quality workmanship of profile connections for a perfect look
  • - Predominantly direct light distribution
  • - Through-wiring designed
  • - Simple and convenient lighting installation
  • - Interchangeable lighting inserts
  • - Colour tolerance according to MacAdam ≤ 3 SDCM
  • - Complete with steel suspension cable (1.5 m), transparent power cable and canopy
  • - Continuous mounted options and many other configurations are available at www.light-performer.com

Product data

ETIM Group:
EG000027
ETIM Class:
EC001743

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
5660
Luminaire lumen output
[lm]:
4770
Luminaire
wattage [W]:
41 W
Luminous efficacy [lm/W]:
116
CRI:
90
Colour
temperature [K]:
3000
Colour /
Finishing:
WH-RAL9016 / White RAL9016 / Textured
IP degree
of protection:
IP30
Impact resistance / impact energy:
IK05 0.7J xx3
Protection class:
I
Optic:
S/C - Symmetric direct-indirect
Beam
angle:
2 x 38°/39°
Net weight [kg]:
5.329
Overall length [mm]:
1132
Overall width [mm]:
44
Overall height [mm]:
66

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
No diffuser
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
220-240V 50/60Hz
Power factor / COS Φ:
0.9
EEI:
A2

Installation

Application area:
Indoor
Mounting type:
Suspended
Min. ambient temperature [°C]:
10
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct/Indirect
DFF - Downward Flux Fraction [%]:
62
UFF - Upward Flux Fraction [%]:
38
UGR max.:
16.0

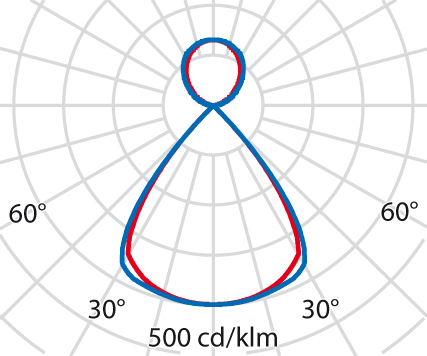

Photometric data

Photometric Lvk SL764+ PL LV S/C 1

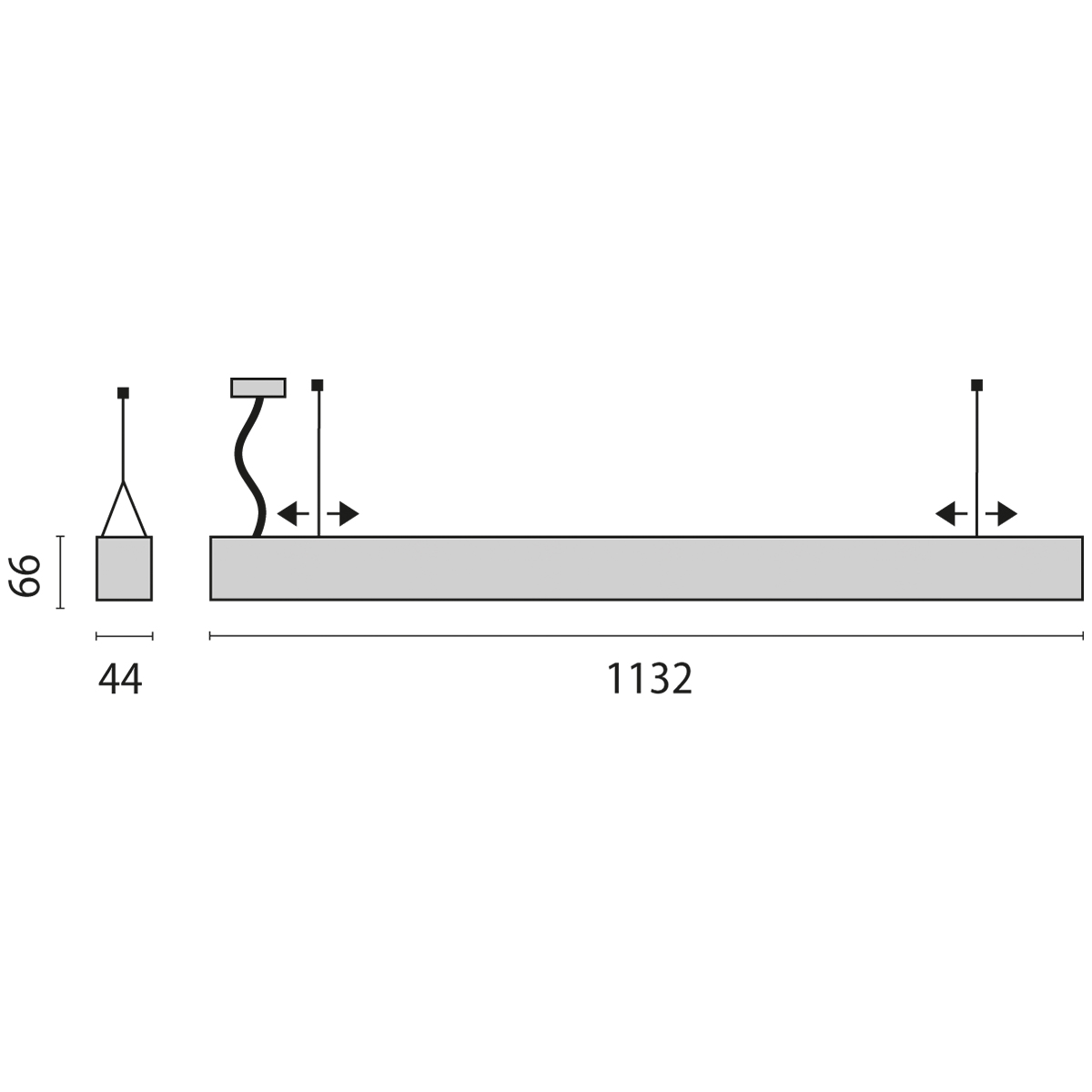

Technical drawings

Tech Design SL764+ PL LV S/C 1++
