SMALL LINE PL REFLECTOR

Part number 3115683

Suspended, LED luminaire for indoor, comprising:
- Extruded aluminium profile housing, die-cast aluminium end caps, steel sheet canopy, painted
- Slender plates with open spaces give the luminaire a uniquely delicate design
- Direct / indirect light distribution
- Gear tray with high-shine multifaceted reflectors (metallized with ultra-pure aluminium) for maximum luminaire efficiency and neutral colour rendering
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Complete with steel suspension cable (1.5 m) and canopy
- The luminaire unit is attached to the cable suspension without tools using clips
- Power is supplied via the cable suspension, no additional supply cable is required
- VDU application suitable acc. to EN 12464-1
- Sensor device available with task oriented PIR detector and daylight control
- Special colour versions available. Consult factory
- Bluetooth sensor component for use with dimSMART! light control
- Design by BÜRO SOMMER
- Design by BÜRO SOMMER

Product data

ETIM Group:

EG000027

ETIM Class:

EC001743

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

11540

Luminaire lumen output
[lm]:

8730

Luminaire
wattage [W]:

67 W

Luminous efficacy [lm/W]:

130

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

BK-RAL9005 / Black RAL9005 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK03 0.35J xx1

Protection class:

Optic:

S/C - Symmetric direct-indirect

Beam
angle:

2 x 37°

Net weight [kg]:

2.152

Overall length [mm]:

1256

Overall width [mm]:

132

Overall height [mm]:

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

No diffuser

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 50/60Hz

Power factor / COS Φ:

>0.9

Installation

Application area:

Indoor

Mounting type:

Suspended

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct/Indirect

DFF - Downward Flux Fraction [%]:

UFF - Upward Flux Fraction [%]:

UGR max.:

8.0

Photometric data

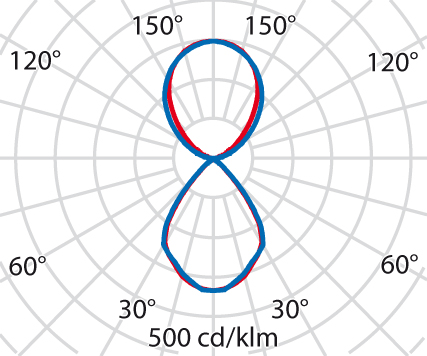

Photometric Lvk SMALL LINE PL REFLECTOR 1

Technical drawings
