SMART [3] PLUS 800 OPAL
SMART [3] PLUS 800 OPAL - 1

SMART [3] PLUS 800 OPAL

Part number GWS3122AP957
  • Watertight fixture IP66/69 for industrial applications, ideal for production areas, warehouses, and logistics areas
  • - Designed to replace high-flux fluorescent devices and lowbays up to 10,000lm
  • - IK08 body in RAL7035 colored self-exhausting polycarbonate
  • - Available in 3 sizes: 800, 1200and 1600 mm
  • - Available in 3000K, 4000K and 5700K with CRI ≥80 or ≥90
  • - Available with powers ranging from 25 W to 63 W and flux ranging from 4,000 lm to 10,000 lm
  • - Mid-power LED flip chip type
  • - Available with integrated On/Off or DALI driver
  • - The through wiring version has pre-wired mechanical and electrical connections as accessories, allowing up to 25 fixtures installed in a continuous row
  • - Available in 4 different optical solutions: trasparent or opal diffuser in UV-stabilized, self-extinguishing polycarbonate; the transparent version can be equipped with TIR lenses in PMMA with medium or elliptical beam
  • - The device can be hung or wall-mounted through bracket accessory with a tilt of 30° or 45° on the vertical axis
  • - Available in DALI version with integrated emergency kit with 3h autonomy
  • - Available with external emergency kit with 3h autonomy compatible with through wiring versions (to be ordered separately)
  • - L90B10 (Tq 25°C) = 50.000 h; L80B10 (Tq 25°C) = 100.000 h; L80B10 (Tq 50°C) = 94.000 h

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Luminaire lumen output
[lm]:
2900
Luminaire
wattage [W]:
25 W
Luminous efficacy [lm/W]:
116
CRI:
90
Colour
temperature [K]:
5700
Colour /
Finishing:
Grey RAL 7035 / Grey RAL7035
IP degree
of protection:
IP66
IP above/below ceiling:
IP66/IP69
IK-J-xxIP:
IK08 5J xx5
Protection class:
II
Optic:
OPAL - Opal
Net weight [kg]:
1.93
Overall length [mm]:
800
Overall width [mm]:
110
Overall height [mm]:
90

Mechanical features

Housing material:
Plastic
Diffuser material:
Opal plastic
Glow wire test [°C]:
850 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60

Installation

Application area:
Indoor
Mounting type:
Weatherproofs
Min. ambient temperature [°C]:
-25
Max. ambient temperature [°C]:
50

Light features

MacAdam:
3
Lumen maintenance:
L80B10@100000h
Distribution of light emission:
Direct
UGR max.:
0.0

Photometric data

Technical drawings

Tech Design SMART [3] PLUS 800 OPAL 1++

Optional accessories

SMART [3] PLUS

Part number Colour /
Finishing
Description Downloads
Wall-mounting bracket 30°/45°
GWS3191
Wall-mounting bracket 30°/45°
Downloads
Rigid pipe adaptor
GWS3193
Rigid pipe adaptor
Downloads

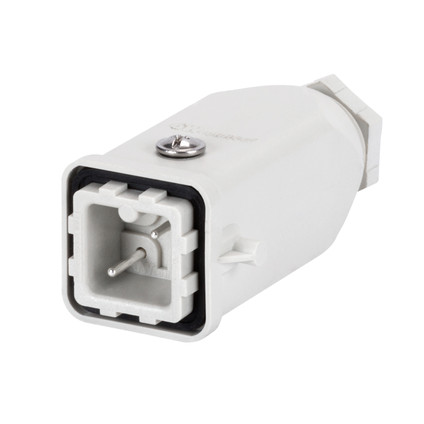

Male connector 4 poles 10 A
GWS3194
Male connector 4 poles 10 A
Downloads
Continuous line connection kit
GWS3197
Continuous line connection kit
Downloads

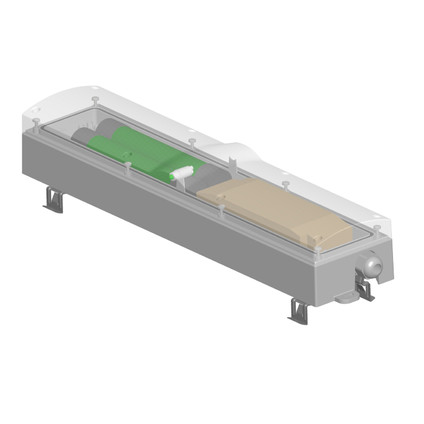

Emergency kit 3h for through wiring version
GWS3198
Emergency kit 3h for through wiring version
Downloads
RINA clamp kit
GWS3296
RINA clamp kit
Downloads
