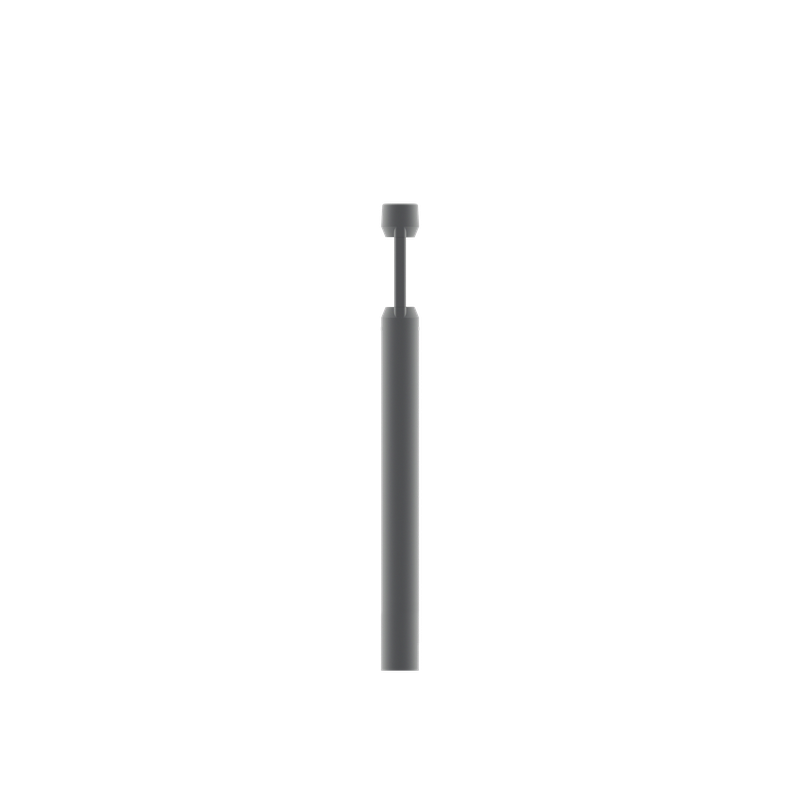

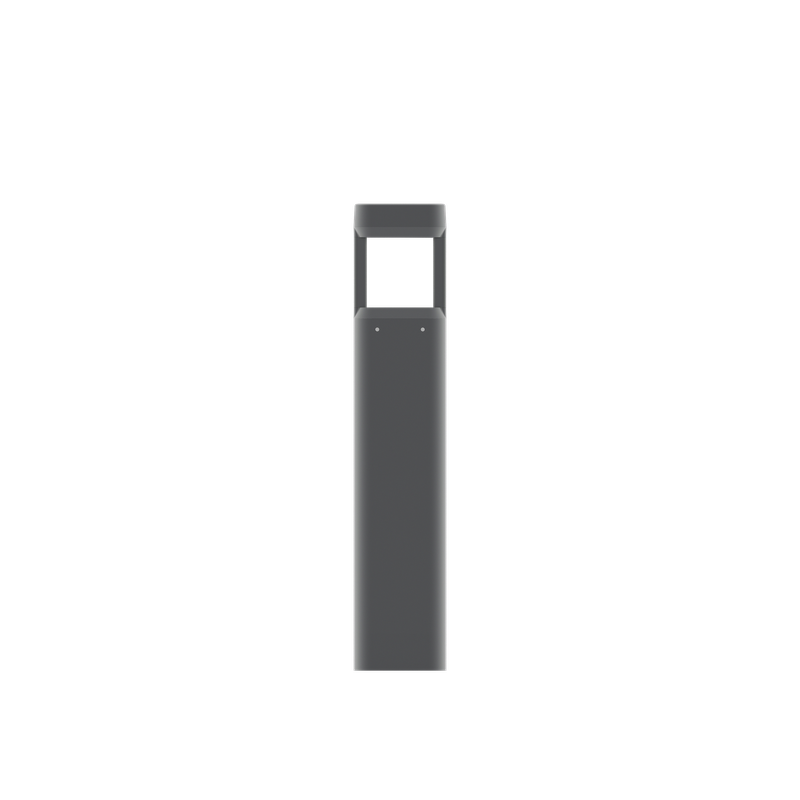

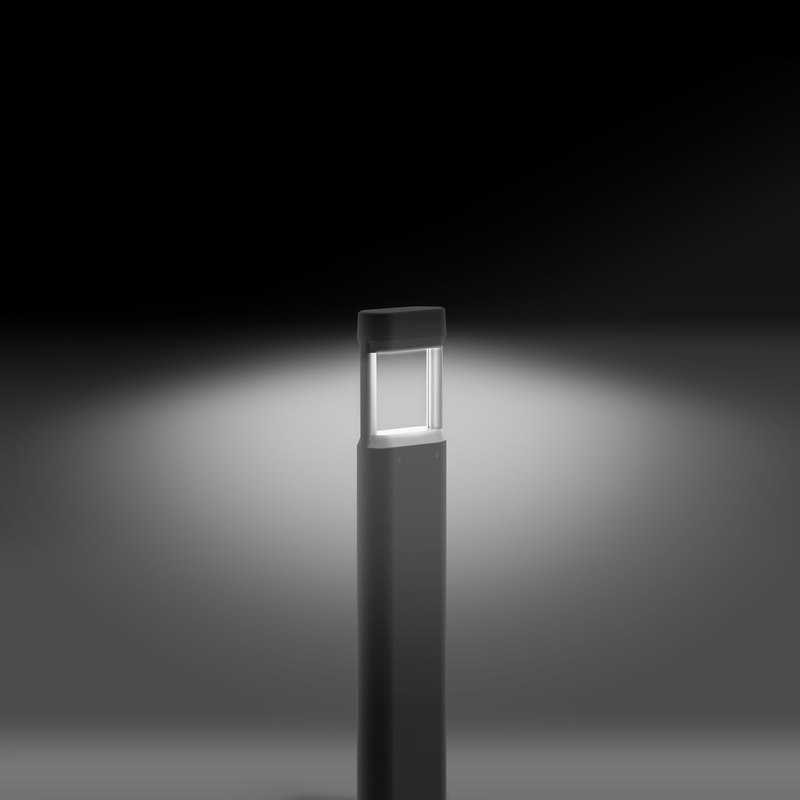

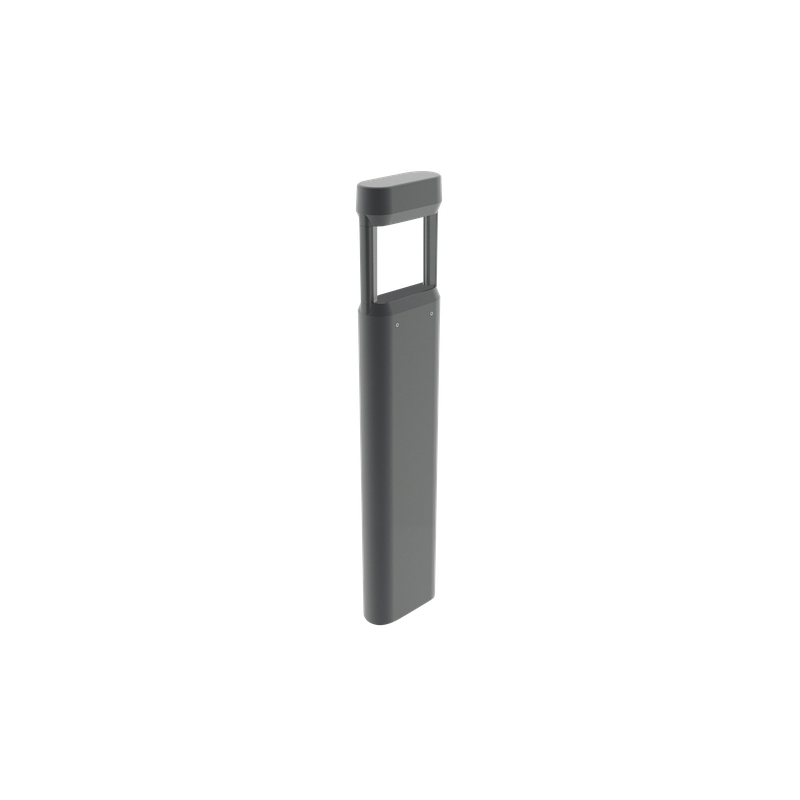

AMON MINI S/W

Part number 306059

Luminaire for indoor and outdoor floor mount, comprising:
- Extruded aluminium profile housing, powder-coated ISO 9227/12944 - ISO 9223 (C5)
- Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
- Coated die-cast aluminium optical compartment
- Satin finish pure aluminium reflector (Al 99.98)
- Anti-ageing custom moulded silicone sealing gasket(s)
- Electrical connection via junction box
- Die-cast aluminium inspection access door included
- Built-in driver
- Stainless steel locking hardware
- Coated die-cast aluminium cabling compartment
- Heavy-duty die-cast aluminium base cover available as accessory (ordered separately)
- Stainless steel bolt-on root for concrete anchoring available as accessory (ordered separately)
- Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/DM)
- Floor mounting steel base plate included

Product data

ETIM Group:

EG000027

ETIM Class:

EC000301

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

5046

Luminaire lumen output
[lm]:

2021

Luminaire
wattage [W]:

40 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP65

Impact resistance / impact energy:

IK09 10J xx7

Protection class:

Optic:

S/W - Symmetric Wide

Net weight [kg]:

20.808

Overall diameter [mm]:

300

Overall height [mm]:

1200

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Glow wire test [°C]:

650 °C

Frontal exposed area [m²]:

0.29

Lateral exposed area [m²]:

0.12

Top exposed area [m²]:

0.02

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 50/60Hz

Power factor / COS Φ:

0.9

Surge protection | Common [kV]:

10.000000

Surge protection | Differential [kV]:

10.000000

Inrush current [A/μs]:

28 / 80

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Area lighting

Min. ambient temperature [°C]:

-25

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L70B10@150000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*3

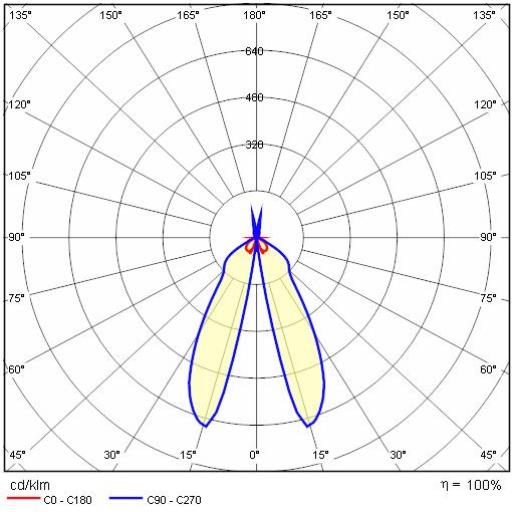

Photometric data

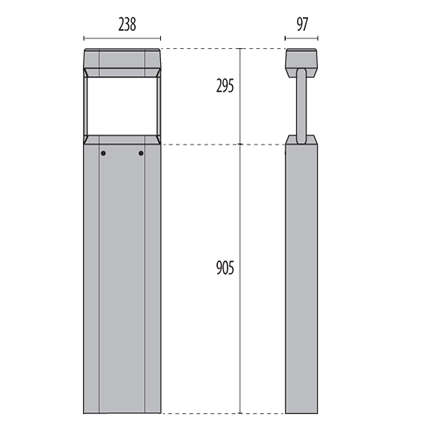

Technical drawings

Optional accessories

AMON MINI

Part number	Description	Downloads
310921	AMON groundplate cover	Add to technical datasheetRemove from technical datasheet Downloads Documentation: AMON MINI - 310921
310922	Flange plate with fixing rod	Add to technical datasheetRemove from technical datasheet Downloads Documentation: AMON MINI - 310922
310923	Steel bolt-on root	Add to technical datasheetRemove from technical datasheet Downloads Documentation: AMON MINI - 310923
