Name: EKO+26 LED SMD 16W 3000K ANTR
Brand: Performance in Lighting
SKU: 302633

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

2226

Luminaire lumen output
[lm]:

1161

Luminaire
wattage [W]:

16 W

Luminous efficacy [lm/W]:

73

CRI:

80

Colour
temperature [K]:

3000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK07 2J xx5

Protection class:

I

Optic:

S/EW - Symmetric Extra-Wide

Net weight [kg]:

2.149

Overall diameter [mm]:

293

Overall width [mm]:

119

Mechanical features

Shape:

Round 150 ≤ x ≤ 300 mm

Housing material:

Aluminium

Diffuser material:

Glass

Electrical features

Voltage type:

AC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

5 / 50

C10 1.5 mm²:

52

C16 2.5 mm²:

85

B10 1.5 mm²:

31

B16 2.5 mm²:

50

Installation

Application area:

Outdoor

Mounting type:

Bulkhead

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

35

Light features

MacAdam:

3

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct

EKO+26 LED

Product data

General information

Mechanical features

Electrical features

Installation

Light features

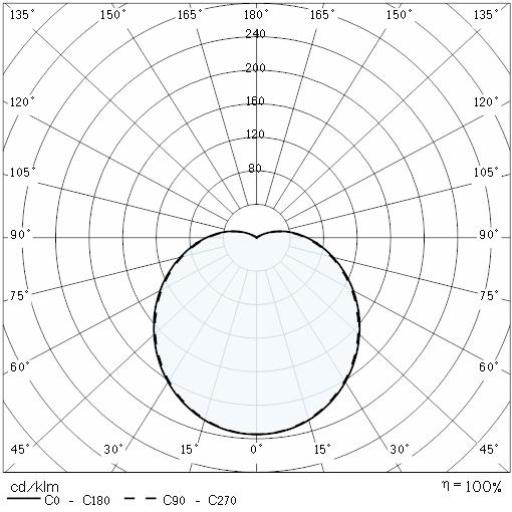

Photometric data
