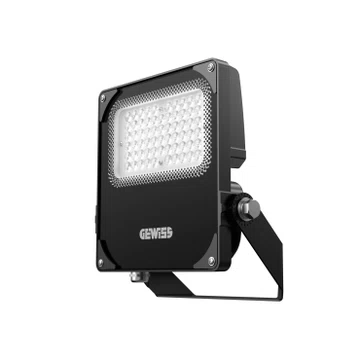

ELIA FL S3 50W ASYMMETRIC
ELIA FL S3 50W ASYMMETRIC - 1

ELIA FL S3 50W ASYMMETRIC

Part number GWF1100HC857
  • LED floodlight, available in medium and high-power versions for outdoor and indoor applications in industrial, tertiary and sports contexts, such as façades, warehouses, car parks and sports fields
  • - Thanks to its black powder-coated die-cast aluminium body and its front glass, the fixture is tough, durable (IP66 and IK08) and is able to withstand harsh environmental conditions (such as ambient temperature variations from -30°C to +50°C)
  • - Available in 4 different sizes and power steps (50 W, 100 W, 150 W and 200 W), the range allows for great flexibility with its multiple possible combinations: 3 colour temperature options (3,000 K warm white, 4,000 K neutral white and 5,700 K cool white) with a colour rendering index of more than 80; 2 integrated power supply options (On/Off and DALI); and 2 optics options (60° and asymmetrical)
  • - The luminaire can be ceiling, wall or floor-mounted through the integrated adjustable steel bracket with a protractor, or pole-mounted (in poles with diameter up to 61 mm) through a dedicated accessory (to be ordered separately)

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Luminaire lumen output
[lm]:
6400
Luminaire
wattage [W]:
50 W
Luminous efficacy [lm/W]:
128
CRI:
80
Colour
temperature [K]:
5700
Colour /
Finishing:
Black RAL 9017 / Black RAL9017
IP degree
of protection:
IP66
IK-J-xxIP:
IK08 5J xx5
Protection class:
I
Optic:
ASYMM - Asymmetric
Net weight [kg]:
1.7
Overall length [mm]:
268
Overall width [mm]:
228
Overall height [mm]:
52

Mechanical features

Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
750 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60

Installation

Application area:
Outdoor
Mounting type:
Floodlighting
Min. ambient temperature [°C]:
-30
Max. ambient temperature [°C]:
50

Light features

MacAdam:
5
Lumen maintenance:
L80B50@75000h
Distribution of light emission:
Direct
UGR max.:
0.0
IPEA* (large areas, roundabouts):
A7+
IPEA* (green areas):
A5+

Photometric data

Technical drawings

Tech Design ELIA FL S3 50W ASYMMETRIC 1++

Optional accessories

ELIA FL S3

Part number Colour /
Finishing
Description Downloads

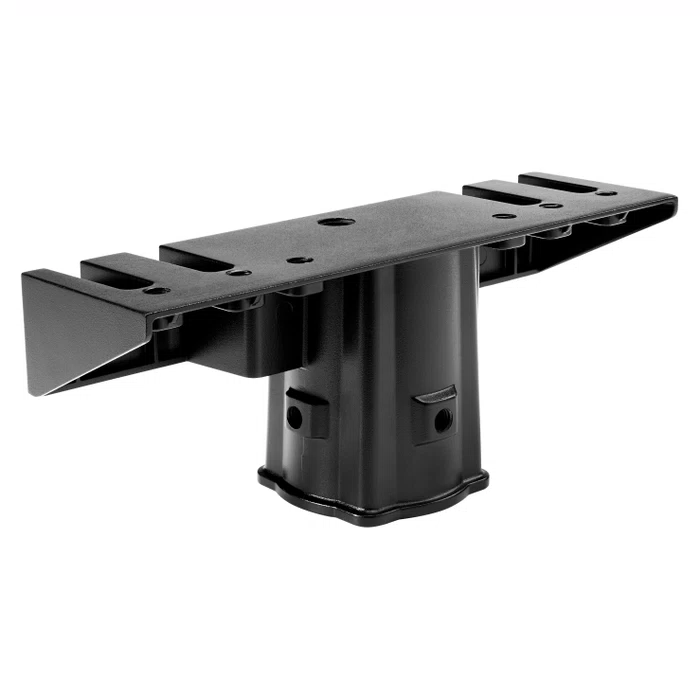

Headpole - black
GWF1901
Headpole - black
