INSERT+ 1 V

Part number 3118536

Wall recessed luminaire, for indoor and outdoor, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Inner satin toughened flat glass diffuser
- Anti-ageing custom moulded silicone sealing gasket(s)
- Stainless steel springs for quick connection to recessed box
- No visible screws
- Driver On Board 220-240V 50/60Hz LED module protected against surges up to 500 V
- Use of protection against voltage surges that may be on the electrical line is recommended in order to protect the appliances
- Recessed box to be ordered separately
- The recessed box removable cover features two integral spirit levels for installation ease
- Available for thourgh wiring as accessories. Connectors fit Ø 7 - Ø 10,5 mm and Ø 14 - Ø 17 mm cables

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

418

Luminaire lumen output
[lm]:

197

Luminaire
wattage [W]:

4 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP65

Impact resistance / impact energy:

IK06 1J xx3

Protection class:

Optic:

A/EW - Asymmetric Extra-Wide

Net weight [kg]:

0.268

Overall length [mm]:

Overall width [mm]:

Overall height [mm]:

226

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Opal glass

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

0.7

Inrush current [A/μs]:

3 / 332

C10 1.5 mm²:

160

C16 2.5 mm²:

256

B10 1.5 mm²:

100

B16 2.5 mm²:

160

Installation

Application area:

Outdoor

Mounting type:

Step lighting

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@65000h

Distribution of light emission:

Direct

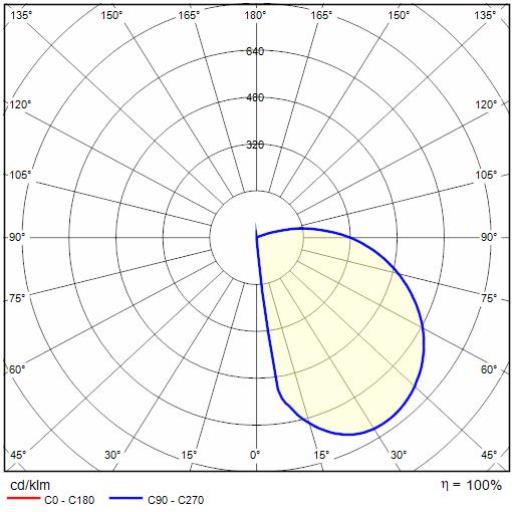

Photometric data

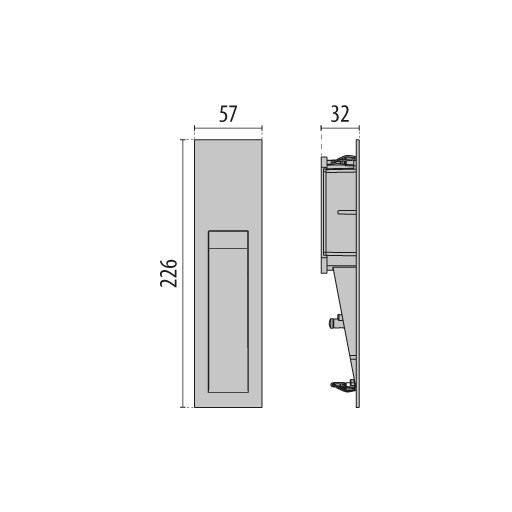

Technical drawings

Mandatory accessories

INSERT+ 1 V

	Part number	Colour / Finishing	Description	Downloads
	310475		Recessed box INSERT+ 1	Add to technical datasheetRemove from technical datasheet Downloads Documentation: INSERT+ 1/2 V - 310475
