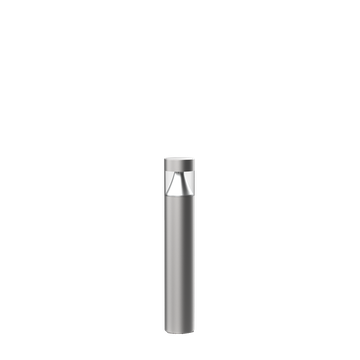

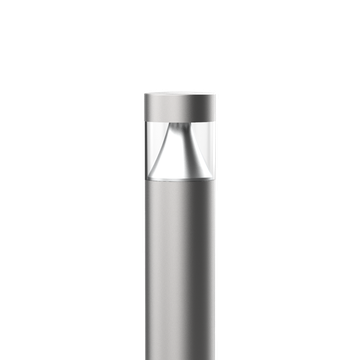

KHA TECH 9 C/EW

Part number 3114003

Series of bollards, comprising:
- Electropolished AISI 316 stainless steel body and top-cap ISO 9223 (CX)
- UV stabilised transparent polycarbonate diffuser
- UV and heat stabilised high-transparency polycarbonate optics. The optical unit compartment features superior heat dissipation and IK10-rated impact resistance grating specific light distributions
- Aluminium heat sink
- Anti-ageing custom moulded silicone sealing gasket(s)
- Technopolymer electrical gearbox
- IP68-rated, loop-through, technopolymer box (WATER-STOP), connected with factory pre-wired H07RN-F cable to the luminaire, for cables Ø 7 - 13.5 mm
- Stainless steel locking hardware
- Die-cast aluminium floor mount base polyester powder coat finish prior chemical surface conversion
- AISI 304 stainless steel sheet metal sturdy bases for floor mounting are available as accessories. For purpose illumination: promoting safe navigation through campuses, car parks and public spaces
- Concrete installation fixing rods are available as accessories. Compatible with standard die-cast aluminium and optional stainless steel heavy use (HU) baseplates
- Design by SILVIA PAOLA PENNACCHIO

Product data

ETIM Group:

EG000027

ETIM Class:

EC000301

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

2100

Luminaire lumen output
[lm]:

1508

Luminaire
wattage [W]:

15 W

Luminous efficacy [lm/W]:

101

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

INOX / Stainless steel / Matt

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK10 24J xx9

Protection class:

Optic:

C/EW - Circular Extra-Wide

Net weight [kg]:

9.4

Overall diameter [mm]:

155

Overall height [mm]:

900

Mechanical features

Shape:

Round ≤ 150 mm

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

650 °C

Frontal exposed area [m²]:

0.14

Lateral exposed area [m²]:

0.14

Top exposed area [m²]:

0.02

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 0/50/60Hz

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

26 / 180

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Bollards

Min. ambient temperature [°C]:

-25

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

0.50

Light features

MacAdam:

Lumen maintenance:

L80B10@220000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*6

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

A+

IPEA* (large areas, roundabouts):

A++

IPEA* (cycle-pedestrian):

A+

IPEA* (green areas):

A+

IPEA* (historic city centers):

A4+

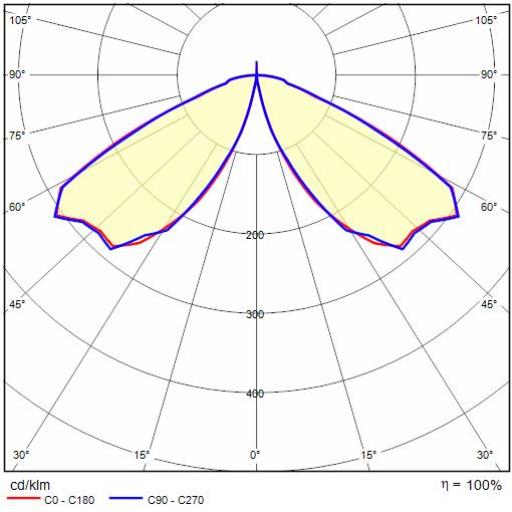

Photometric data

Technical drawings

Optional accessories

KHA TECH

Part number	Description	Downloads
3114402	AISI 316 stainless steel floor installation base	Add to technical datasheetRemove from technical datasheet Downloads Documentation: KHA TECH - 3114402
3114401	AISI 316 stainless steel floor installation base	Add to technical datasheetRemove from technical datasheet Downloads Documentation: KHA TECH - 3114401
14049320	Concrete mounting adaptor with stainless steel plate and galvanised steel rods	Add to technical datasheetRemove from technical datasheet Downloads Documentation: KHA TECH - 14049320
