LASER+ 20 C/I
LASER+ 20 C/I
LASER+ 20 C/I - 1
LASER+ 20 C/I - 2

LASER+ 20 C/I

Part number 3107656
  • LED floodlight for indoor and outdoor, comprising:
  • - Die-cast aluminium bearing structure polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - UV and heat stabilised, technopolymer diffuser with integral custom moulded optics
  • - High-transparency polycarbonate optics
  • - Intensive circular optic
  • - Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
  • - High-efficiency die-cast aluminium heat sink
  • - Die-cast aluminium electrical connection box polyester powder coat finish ISO 9227/19244 - ISO 9233 (C5)
  • - Electrical connection through a 1.5-meter piece of H07RN-F 7G1.5 cable, allowing the electrical connection without opening the luminaire body. The electrical connection, with the cable coming from the power supply unit, must be made using a suitable waterproof system (e.g. junction box) with at least IP66 protection rating.
  • - Light beam obtained by the combination of multiple LED modules
  • - Other colour temperatures (CCT) and colour rendering index (CRI) options available. Consult factory
  • - Die-cast aluminium bracket, polyester powder coat prior surface chemical conversion
  • - Stainless steel locking hardware
  • - All LASER+ power consumption includes power unit losses
  • - Integral graduated goniometer for aiming purposes
  • - For LASER+ 20/30 models use only the power supply units available as accessories (ordered separately)
  • - IP66-rated power control gears available in DALI and DMX-RDM. Maximum distance of 100 m cable length between control gear and luminaire
  • - Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/DM)
  • - Design by GIORGIO LODI

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
154700
Luminaire
wattage [W]:
1060 W
CRI:
80
Colour
temperature [K]:
5700
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP66
Impact resistance / impact energy:
IK08 6J xx5
Protection class:
I
Optic:
C/I - Circular Intensive
Beam
angle:
10°
Net weight [kg]:
24.775
Overall length [mm]:
496
Overall width [mm]:
796
Overall height [mm]:
440

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Plastic
Glow wire test [°C]:
960 °C
Frontal exposed area [m²]:
0.1
Lateral exposed area [m²]:
0.07
Top exposed area [m²]:
0.39

Electrical features

Power factor / COS Φ:
>0.9

Installation

Application area:
Outdoor
Mounting type:
Sports / High Powered Floodlighting
Min. ambient temperature [°C]:
-40
Max. ambient temperature [°C]:
40
Min. distance from lighted object [m]:
1.00

Light features

MacAdam:
5
Lumen maintenance:
L80B10@72000h
Distribution of light emission:
Direct
Luminous Intensity Class:
G*5
Zero light pollution (ULR = 0%):

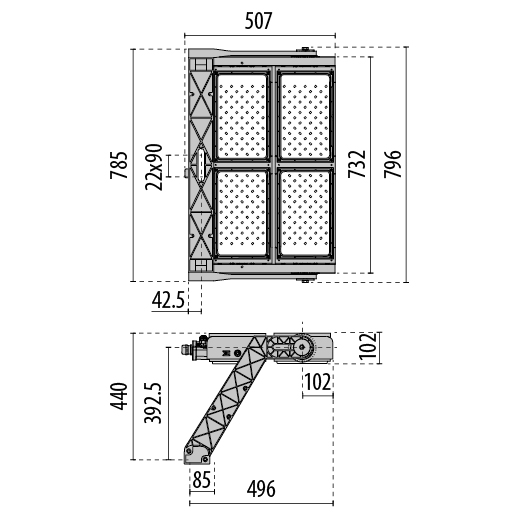

Technical drawings

Tech Design LASER+ 20 C/I 1++

Control gear

LASER+ 20

Part number Colour /
Finishing
Description Downloads
Driver box 1000 - 1,4 A - 2 CH - DALI
3109423
Driver box 1000 - 1,4 A - 2 CH - DALI
Driver box 1000 - 1,4 A - 2 CH - DMX
3109424
Driver box 1000 - 1,4 A - 2 CH - DMX

Optional accessories

LASER+

Part number Colour /
Finishing
Description Downloads
Pointer support
3109552
Pointer support
Downloads
Brackets supports for driver
3117476
Brackets supports for driver
Downloads
