MIMIK 20 FLAT M

Part number 303747

Wall-mounted LED luminaire, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Anti-ageing custom moulded silicone sealing gasket(s)
- Microprismatic, toughened, flat glass diffuser, silk-screened on the inside (MIMIK FLAT versions)
- Single (M) and dual (B) emission versions available
- Extra-clear, toughened, flat glass diffuser, silk-screened on the inside (MIMIK models)
- MIMIK models are equipped with high-transmittance polycarbonate optics with different light distributions to meet a large variety of lighting schemes
- Optimised asymmetric distribution for wide spacing and lighting-class levels matching (CP options)
- Built-in driver
- Stainless steel locking hardware
- EM/3P version is designed for multipurpose 3 hours sustained emergency lighting
- Ni-Cd 3,6 V, 4 Ah batteries, 24 hours recharge time
- Openable and maintainable luminaire (future-proof)

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1653

Luminaire lumen output
[lm]:

1230

Luminaire
wattage [W]:

12 W

Luminous efficacy [lm/W]:

103

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP65

Impact resistance / impact energy:

IK06 1J xx3

Protection class:

Optic:

A/W - Asymmetric Wide

Net weight [kg]:

1.424

Overall length [mm]:

200

Overall width [mm]:

Overall height [mm]:

200

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

0/50/60

Power factor / COS Φ:

>0.9

Input voltage [V DC]:

170/280

Surge protection | Common [kV]:

4.000000

Inrush current [A/μs]:

5 / 50

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Exterior wall

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

Zero light pollution (ULR = 0%):

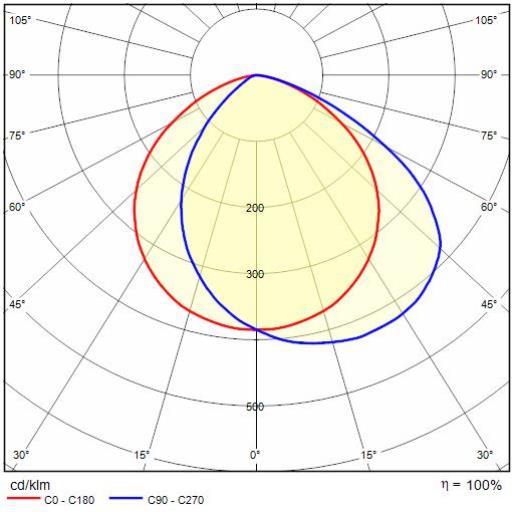

Photometric data

Technical drawings

Optional accessories

MIMIK FLAT M

	Part number	Colour / Finishing	Description	Downloads
	310441		FLAT M Customising ring / Facade Accessory	Add to technical datasheetRemove from technical datasheet
