MIMIK 20 CEILING
MIMIK 20 CEILING
MIMIK 20 CEILING

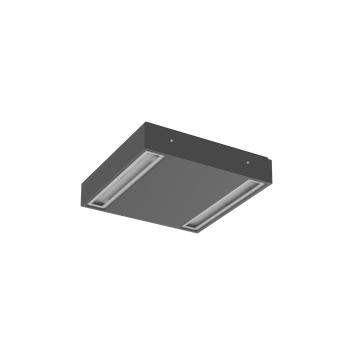

MIMIK 20 CEILING - 1

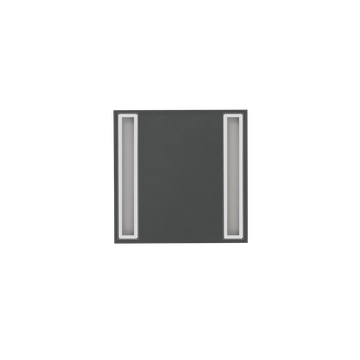

MIMIK 20 CEILING - 2

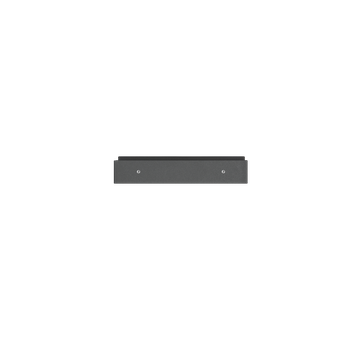

MIMIK 20 CEILING - 3

MIMIK 20 CEILING

Part number 3105849
  • Ceiling surface mounted LED luminaire, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Toughened flat glass diffuser, internally coated, for homogeneous light distribution
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - Built-in driver
  • - Static ON/OFF or dimmable DALI options available
  • - Stainless steel locking hardware
  • - Openable and maintainable luminaire (future-proof)

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
3560
Luminaire lumen output
[lm]:
1854
Luminaire
wattage [W]:
22 W
Luminous efficacy [lm/W]:
84
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
AN-96 / Anthracite gray / Textured
IP degree
of protection:
IP65
Impact resistance / impact energy:
IK06 1J xx3
Protection class:
I
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
1.468
Overall length [mm]:
200
Overall width [mm]:
200
Overall height [mm]:
42

Mechanical features

Shape:
Square 150 ≤ x ≤ 300 mm
Housing material:
Aluminium
Diffuser material:
Glass

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Inrush current [A/μs]:
5 / 70
C10 1.5 mm²:
41
C16 2.5 mm²:
66
B10 1.5 mm²:
27
B16 2.5 mm²:
44

Installation

Application area:
Outdoor
Mounting type:
Exterior ceiling
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@84000h
Distribution of light emission:
Direct
Zero light pollution (ULR = 0%):

Photometric data

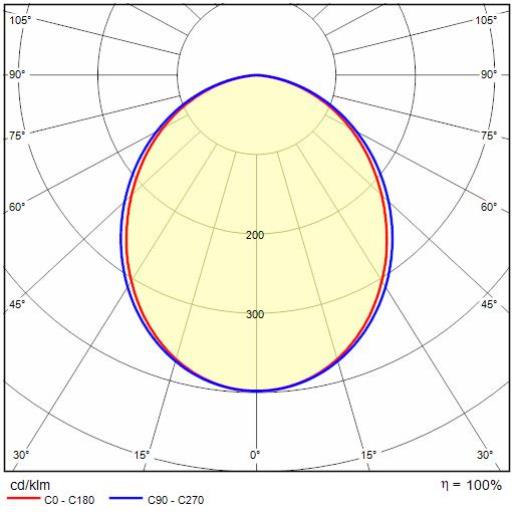

Photometric Lvk MIMIK 20 CEILING 1

Technical drawings

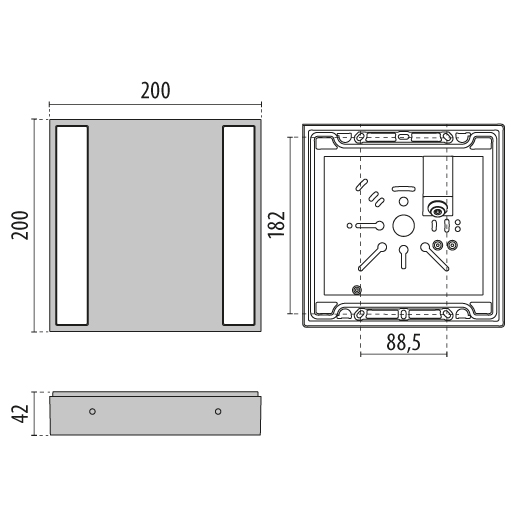

Tech Design MIMIK 20 CEILING 1++
