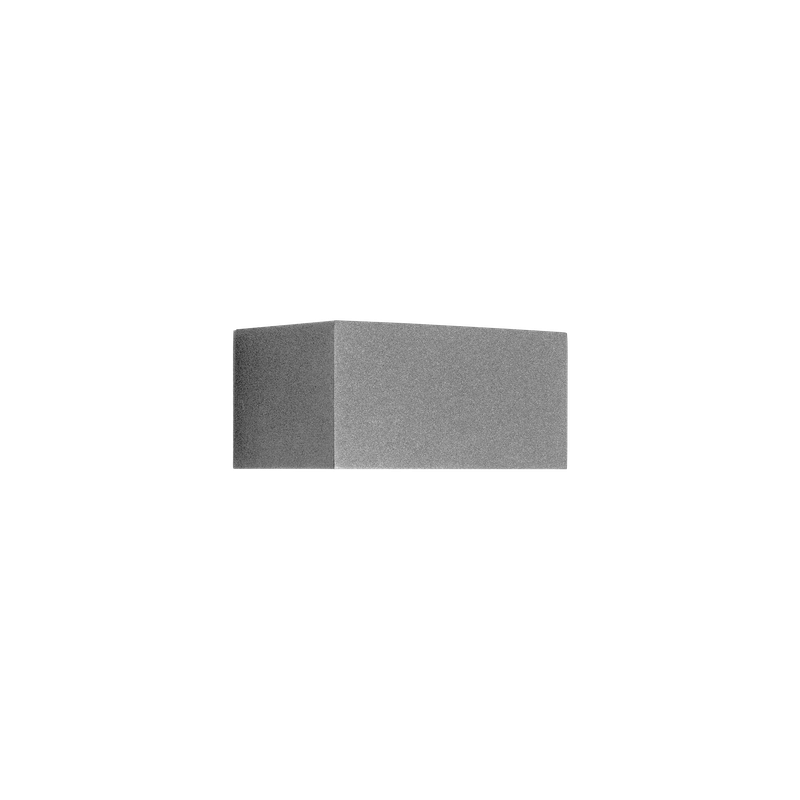

QUASAR 20 DOUBLE TECH
QUASAR 20 DOUBLE TECH
QUASAR 20 DOUBLE TECH - 1
QUASAR 20 DOUBLE TECH - 2

QUASAR 20 DOUBLE TECH

Part number 304097
  • Wall-mounted LED luminaire, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Toughened flat glass diffuser, internally coated, for homogeneous light distribution
  • - Microprismatic, toughened, flat glass diffuser, silk-screened on the inside (TECH versions)
  • - Satin finish pure aluminium reflector (Al 99.98)
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - Built-in driver
  • - Stainless steel locking hardware
  • - Openable and maintainable luminaire (future-proof)
  • - Versions with dimmable 1-10 V or DALI drivers available. Consult factory

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
2584
Luminaire lumen output
[lm]:
1417
Luminaire
wattage [W]:
20 W
Luminous efficacy [lm/W]:
71
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP65
Impact resistance / impact energy:
IK07 2J xx5
Protection class:
I
Optic:
A30/M - Asymmetric Medium
Net weight [kg]:
1.662
Overall length [mm]:
200
Overall width [mm]:
100
Overall height [mm]:
102

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Inrush current [A/μs]:
25 / 150
C10 1.5 mm²:
24
C16 2.5 mm²:
40
B10 1.5 mm²:
14
B16 2.5 mm²:
24

Installation

Application area:
Outdoor
Mounting type:
Wall surface
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
25

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct/Indirect

Photometric data

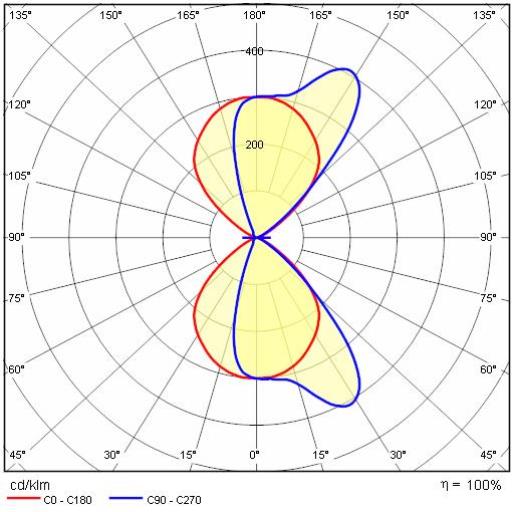

Photometric Lvk QUASAR 20 DOUBLE TECH 1

Technical drawings

Tech Design QUASAR 20 DOUBLE TECH 1++
