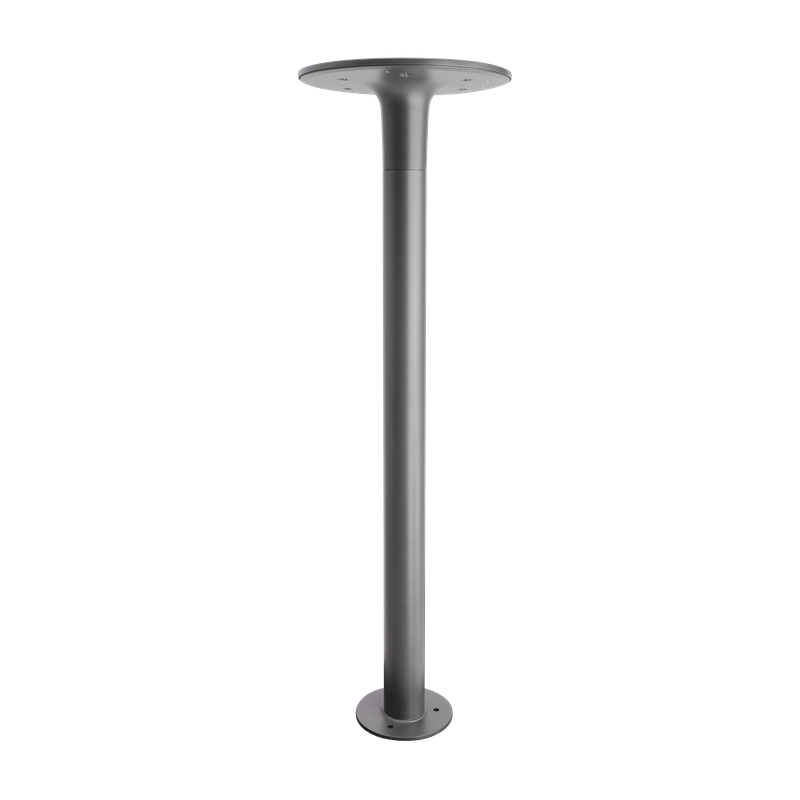

SPILLO MINI POST

Part number 303739

Series of LED landscaping outdoor bollard and pole-top luminaires, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Anti-ageing custom moulded silicone sealing gasket(s)
- IP-rated external socket-plug fast connector (QUICK), complete with factory pre-wired cable
- Anti-tear cable gland M25x1.5 for cables Ø 9 - Ø 14 mm
- Stainless steel locking hardware
- Each LED can by-passed in case of failure thanks to a coupled electronic safety device (NUD)
- The Secure Light Distribution (SLD) system guarantees uniform light distribution even in the remote case of LED failures
- Supplied with 1m factory pre-wired HORNF-5 cable
- Built-in driver
- Glare control and upward light pollution laws compliant (0% ULOR rating)
- Design by ALESSANDRO PEDRETTI

Product data

ETIM Group:

EG000027

ETIM Class:

EC000062

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

2056

Luminaire lumen output
[lm]:

1237

Luminaire
wattage [W]:

16 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP65

Impact resistance / impact energy:

IK10 20J xx9

Protection class:

Optic:

C/EW - Circular Extra-Wide

Net weight [kg]:

5.07

Overall diameter [mm]:

360

Overall height [mm]:

1187

Mechanical features

Shape:

Round ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Plastic

Frontal exposed area [m²]:

0.01

Lateral exposed area [m²]:

0.01

Top exposed area [m²]:

0.1

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

0/50/60

Power factor / COS Φ:

0.95

Input voltage [V DC]:

176/276

Surge protection | Common [kV]:

4.000000

Inrush current [A/μs]:

5 / 50

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Urban light

Min. ambient temperature [°C]:

-25

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*6

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

IPEA* (large areas, roundabouts):

IPEA* (cycle-pedestrian):

IPEA* (green areas):

IPEA* (historic city centers):

Photometric data

Technical drawings

Optional accessories

SPILLO MINI

	Part number	Colour / Finishing	Description	Downloads
	310414		Baseplate Spillo Mini	Add to technical datasheetRemove from technical datasheet
