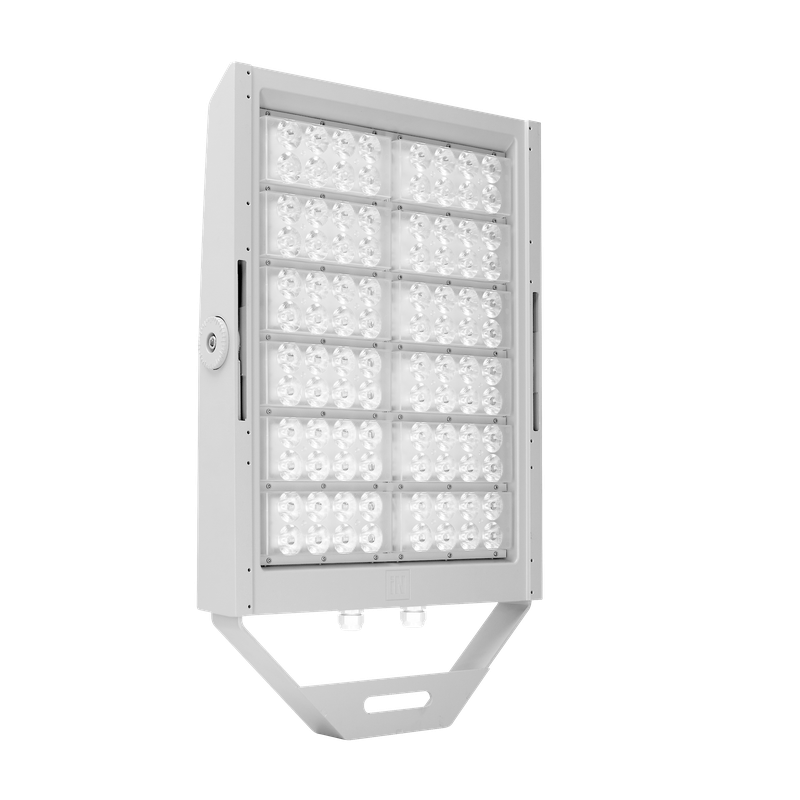

  • High-powered LED floodlight for indoor and outdoor, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - High-transparency polycarbonate optics
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - Built-in electrical connection box with aluminium cover
  • - Waterproof M25x1.5 cable gland for cables Ø 9- Ø 16 mm
  • - Light beam obtained by the combination of multiple LED modules
  • - Other colour temperatures (CCT) and colour rendering index (CRI) options available. Consult factory
  • - Stainless steel locking hardware
  • - Galvanised powder-coated steel bracket
  • - Integral graduated goniometer for aiming purposes
  • - All SQUARE PRO power consumption includes power unit losses
  • - SQUARE PRO 4CH versions are not compatible with protective glass
  • - To connect the SQUARE PRO use the control gears supplied as accessories only
  • - ON-OFF, dimmable DALI and DMX-RDM control gears can be housed in IP66-rated boxes or on IP20-rated metal plates (for electrical panels). The electrical connection between control gear and floodlight must take place with a maximum cable length distance of 50 m
  • - Correctly match the floodlight with the control gear. Pay attention to the models and the number of connections: two (2CH), three (3CH) or four (4CH) channels
  • - Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/DM) for every driver unit/box
