STEEL SQUARE 28 - 18 LED ELL 10°X45°

Part number 301490

Series of reduced depth in-ground luminaires, comprising:
- Black painted anodised die-cast aluminium housing
- Extra-clear toughened flat glass cover thickness 12 mm
- Optic compartment separate from the power compartment for better heat control
- Anti-ageing custom moulded silicone sealing gasket(s)
- Precision-cast stainless steel trim
- Mains connection through waterproof connection system (WATER-STOP)
- Stainless steel locking hardware
- Technopolymer recessed box allows water drainage through the Water-Drain™ system. The recessed rough-in kit is also equipped with a removable cover, with two bubble levels inside for quick installation
- Recessed box to be ordered separately
- LED extruded profiles may be oriented independently (+/- 10°)
- The STEEL SQUARE 28 LED E 10X45° versions are characterised by elliptical optics with 10°x45° ellipsoid beam

Product data

ETIM Group:

EG000027

ETIM Class:

EC000758

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1530

Luminaire lumen output
[lm]:

852

Luminaire
wattage [W]:

20 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

INOX / Stainless steel / Glossy

IP degree
of protection:

IP67

Impact resistance / impact energy:

IK10 20J xx9

Protection class:

Optic:

ELL - Elliptical

Beam
angle:

10°x45°

Net weight [kg]:

6.012

Overall length [mm]:

280

Overall width [mm]:

280

Overall height [mm]:

119

Minimum installation depth [mm]:

127

Mechanical features

Shape:

Square ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Glass

Static load [kg]:

2800

Shear load [kN]:

Resistance to torque [Nm]:

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

0/50/60

Power factor / COS Φ:

0.6

Input voltage [V DC]:

170/280

Surge protection | Common [kV]:

4.000000

Inrush current [A/μs]:

5 / 50

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Inground

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Glass temperature [°C]:

Ingrounds classification:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct

Photometric data

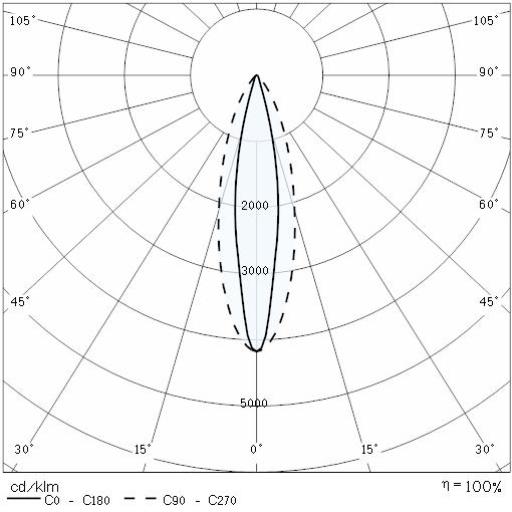

Photometric Lvk STEEL SQUARE 28 - 18 LED ELL 10°X45° 1

Technical drawings

Mandatory accessories

STEEL SQUARE

	Part number	Colour / Finishing	Description	Downloads
	310374		Steel Recessed Fixing Kit, Square 28	Add to technical datasheetRemove from technical datasheet Downloads Documentation: STEEL SQUARE - 310374
