TRY S/W EM
TRY S/W EM
TRY S/W EM
TRY S/W EM
TRY S/W EM - 1
TRY S/W EM - 2
TRY S/W EM - 3
TRY S/W EM - 4
TRY S/W EM - 5

TRY S/W EM

Part number 306502
  • LED system for indoor lighting consisting of luminaires and electrified RAIL, suitable for commercial and industrial applications, comprising:
  • - Extruded aluminium luminaire housing, polyester powder coat, white finish
  • - High-transparency polycarbonate optics
  • - Built-in driver
  • - Tool-free springs installation of the luminaire to the electric RAIL
  • - Integrated emergency unit
  • - 3 hours
  • - To be combined with the 9-pole DALI + EM RAIL
  • - RAILs feature internal 3 phases 2.5 mm² cables, fast connectors and circuit breakers for a quick installation of the luminaire

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
12800
Luminaire lumen output
[lm]:
10355
Luminaire
wattage [W]:
71 W
Luminous efficacy [lm/W]:
146
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
WH-RAL9003 / White RAL9003 / Glossy
IP degree
of protection:
IP40
IK-J-xxIP:
IK05 0.8J xx3
Protection class:
I
Optic:
S/W - Symmetric Wide
Net weight [kg]:
2.6
Overall length [mm]:
1434
Overall width [mm]:
66
Overall height [mm]:
66

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Plastic
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC/DC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
0/50/60
Power factor / COS Φ:
0.9
Input voltage [V DC]:
198/276
Inrush current [A/μs]:
32 / 240
C10 1.5 mm²:
17
C16 2.5 mm²:
28
B10 1.5 mm²:
10
B16 2.5 mm²:
16

Installation

Application area:
Indoor
Mounting type:
Fast trunking systems
Min. ambient temperature [°C]:
5
Max. ambient temperature [°C]:
35

Light features

MacAdam:
3
Lumen maintenance:
L80B10@60000h
Distribution of light emission:
Direct
UGR max.:
19.4

Photometric data

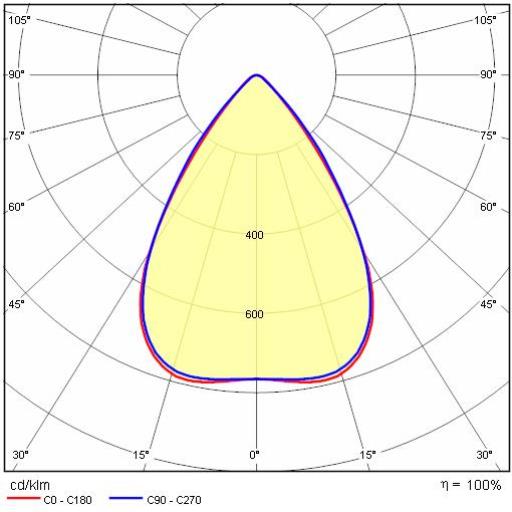

Photometric Lvk TRY S/W EM 1

Technical drawings

Tech Design TRY S/W EM 1++

Mandatory accessories

RAIL-A TRY 9P DALI/EM

Part number Colour /
Finishing		 Description Downloads
RAIL-A TRY 9P DALI/EM - L 1435 mm (2 stainless steel brackets included)
310934
RAIL-A TRY 9P DALI/EM - L 1435 mm (2 stainless steel brackets included)
Downloads

RAIL-M TRY 9P DALI/EM

Part number Colour /
Finishing		 Description Downloads
RAIL-M TRY 9P DALI/EM - L 1435 mm (2 stainless steel brackets included)
310935
RAIL-M TRY 9P DALI/EM - L 1435 mm (2 stainless steel brackets included)
Downloads
RAIL-M TRY 9P DALI/EM - L 2870 mm (4 stainless steel brackets included)
310936
RAIL-M TRY 9P DALI/EM - L 2870 mm (4 stainless steel brackets included)
Downloads
RAIL-M TRY 9P DALI/EM - L 4305 mm (6 stainless steel brackets included)
310937
RAIL-M TRY 9P DALI/EM - L 4305 mm (6 stainless steel brackets included)
Downloads

Optional accessories

TRY

Part number Colour /
Finishing		 Description Downloads
Suspension kit (2 m)
14-00354
Suspension kit (2 m)
Chain suspension
310550
Chain suspension
Closing plates for RAIL (nr. 2)
310551
Closing plates for RAIL (nr. 2)
Cover PC RAIL - L 1435 mm
310553
Cover PC RAIL - L 1435 mm
