A+ 100

Part number 3111274

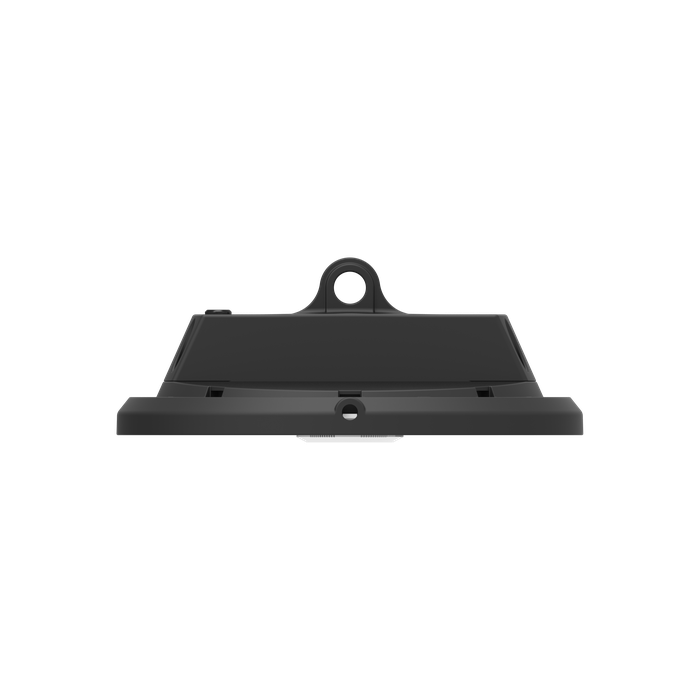

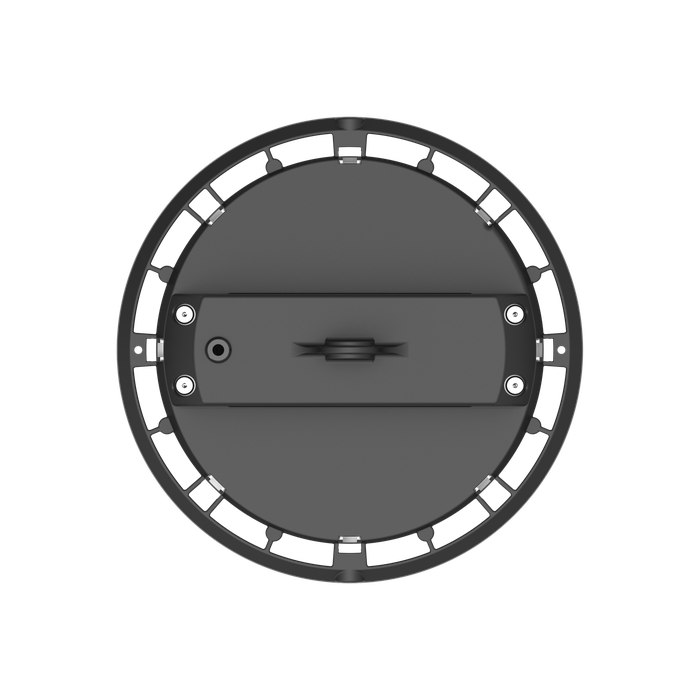

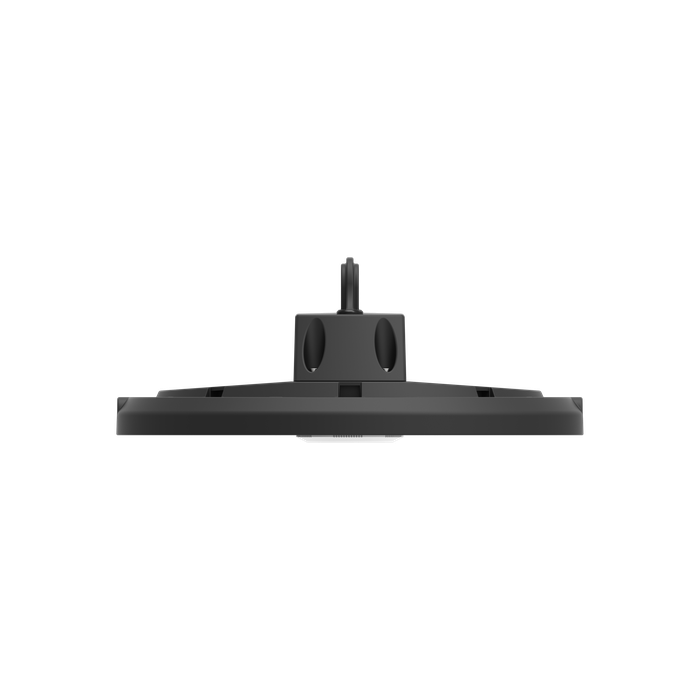

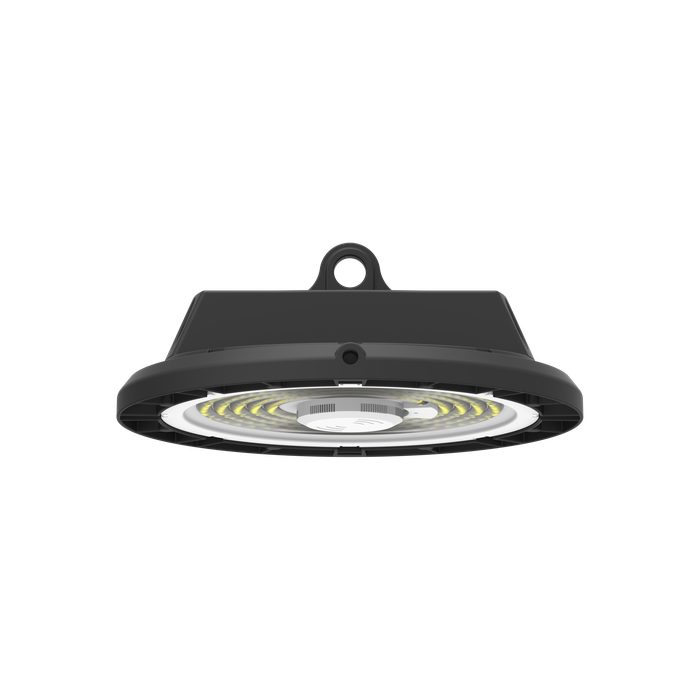

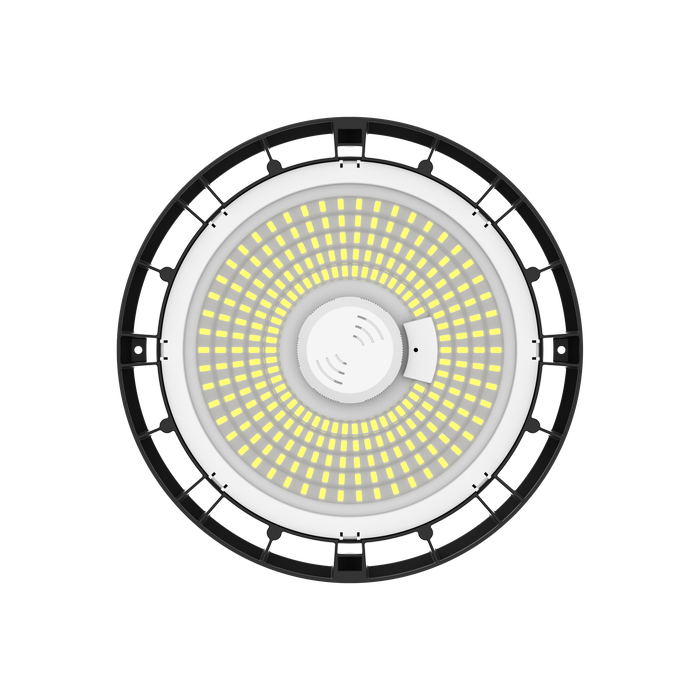

Suspended LED luminaire for indoor and outdoor industrial applications, comprising:
- Die-cast aluminium housing and trim polyester powder coat finish, coat finish prior chemical conversion surface treatment
- UV and heat stabilised, technopolymer diffuser with integral custom moulded optics
- Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
- Stainless steel locking hardware
- Suspension hook in painted aluminium with safety screw
- Complete with cable H05RN-F
- Built-in driver
Options:
- Painted steel bracket
- Infrared remote control for sensor module

Product data

ETIM Group:

EG000027

ETIM Class:

EC001716

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

18540

Luminaire lumen output
[lm]:

16110

Luminaire
wattage [W]:

100 W

Luminous efficacy [lm/W]:

161

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

BK-RAL9005 / Black RAL9005 / Textured

IP degree
of protection:

IP65

Impact resistance / impact energy:

IK08 5J xx5

Protection class:

Optic:

C/EW - Circular Extra-Wide

Beam
angle:

90°

Net weight [kg]:

2.104

Overall diameter [mm]:

262

Overall height [mm]:

104

Mechanical features

Shape:

Round 150 ≤ x ≤ 300 mm

Housing material:

Aluminium

Diffuser material:

Transparent plastic

Glow wire test [°C]:

960 °C

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Surge protection | Common [kV]:

10.000000

Surge protection | Differential [kV]:

6.000000

Inrush current [A/μs]:

50 / 316

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Indoor

Mounting type:

Hi / low-bay

Min. ambient temperature [°C]:

-40

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

Photometric data

Technical drawings

Optional accessories

A+

	Part number	Colour / Finishing	Description	Downloads
	3111281		Fixing bracket A+100	Add to technical datasheetRemove from technical datasheet

A+ 100

	Part number	Colour / Finishing	Description	Downloads
	311019		Polycarbonate diffuser A+ 100	Add to technical datasheetRemove from technical datasheet

A+ 100 / A+ 150 / A+ 200

Part number	Description	Downloads
3111277	Microwave motion sensor	Add to technical datasheetRemove from technical datasheet Downloads Documentation: A+ - 3111277
3111278	Remote control	Add to technical datasheetRemove from technical datasheet Downloads Documentation: A+ - 3111278
3111279	DALI converter	Add to technical datasheetRemove from technical datasheet Downloads Documentation: A+ - 3111279
