DLSB150 LED OPAL COVER - 95 MM

Part number 815711864001

Recessed, modular, round LED downlight for indoor, comprising:
- Multi-purpose die-cast aluminium housing combines all functions: heat-sinking, ceiling trim, ceiling brackets and gear tray connection
- Light-tight housing (prevents light distribution in the suspended ceiling)
- Suitable for ceiling tile thickness from 1-25 mm
- Recessed frosted diffuser for optimal light distribution and high homogeneity
- White modular reflector, ABS injection-moulded with light-tight connection of LED board
- Excellent heat dissipation through die-cast aluminium heat sink with Fast™ (Flexible Air Stream) Technology
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Built-in driver
- DALI dimmable

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

2510

Luminaire lumen output
[lm]:

1700

Luminaire
wattage [W]:

18.5 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

WH-RAL9016 / White RAL9016 / Textured

IP degree
of protection:

IP20

IP above/below ceiling:

IP20/IP44

Impact resistance / impact energy:

IK04 0.5J xx3

Protection class:

Optic:

C/EW - Circular Extra-Wide

Beam
angle:

2x47°

Net weight [kg]:

1.027

Overall diameter [mm]:

152

Overall height [mm]:

Cut-out diameter [mm]:

Ø 140

Minimum installation depth [mm]:

Mechanical features

Shape:

Round ≤ 150 mm

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

0/50/60

Power factor / COS Φ:

0.9

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

EEI:

Installation

Application area:

Indoor

Mounting type:

Downlight and spotlight

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct

DFF - Downward Flux Fraction [%]:

100

UFF - Upward Flux Fraction [%]:

Photometric data

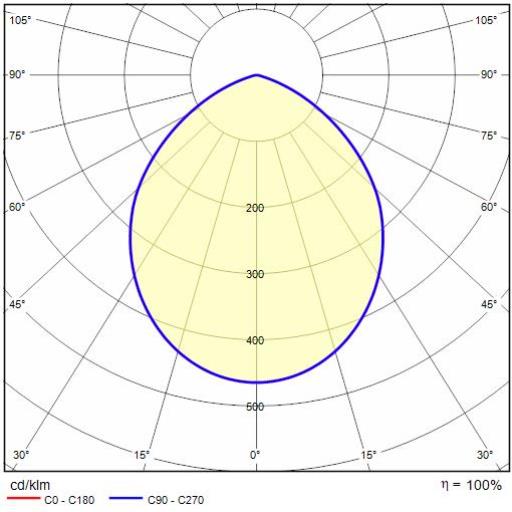

Photometric Lvk DLSB150 LED OPAL COVER - 95 MM 1

Technical drawings

Tech Design DLSB150 LED OPAL COVER - 95 MM 1++
