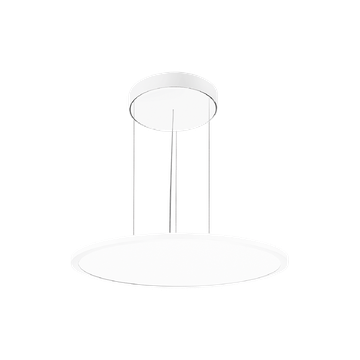

FL ROUND 555 PL OP
FL ROUND 555 PL OP
FL ROUND 555 PL OP - 1
FL ROUND 555 PL OP - 2

FL ROUND 555 PL OP

Part number 8555291513410
  • Suspended, round LED luminaire for indoor, comprising:
  • - Housing made from sheet steel and die-cast aluminium, powder-coated
  • - Opal white diffuser for optimum light distribution and excellent uniformity (OP)
  • - LED Sidelight-Technology and light orienting plastic optic for a homogenous light distribution over the entire area of the diffuser
  • - Direct light distribution
  • - Colour tolerance according to MacAdam ≤ 3 SDCM
  • - Complete with steel suspension cable (1.5 m), transparent power cable and canopy
  • - Built-in driver

Product data

ETIM Group:
EG000027
ETIM Class:
EC001743

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
7700
Luminaire lumen output
[lm]:
6210
Luminaire
wattage [W]:
50 W
Luminous efficacy [lm/W]:
124
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
WH-RAL9016 / White RAL9016 / Textured
IP degree
of protection:
IP20
Impact resistance / impact energy:
IK06 1J xx3
Protection class:
I
Optic:
S/A - Symmetric direct
Beam
angle:
2 x 56°
Net weight [kg]:
5.242
Overall diameter [mm]:
552
Overall height [mm]:
14

Mechanical features

Shape:
Round ≥ 300 mm
Housing material:
Aluminium
Diffuser material:
Plastic
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
220-240V 50/60Hz
Power factor / COS Φ:
0.9
Inrush current [A/μs]:
22 / 260
C10 1.5 mm²:
24
C16 2.5 mm²:
40
B10 1.5 mm²:
15
B16 2.5 mm²:
24
EEI:
A2

Installation

Application area:
Indoor
Mounting type:
Suspended
Min. ambient temperature [°C]:
10
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct
DFF - Downward Flux Fraction [%]:
100
UFF - Upward Flux Fraction [%]:
0

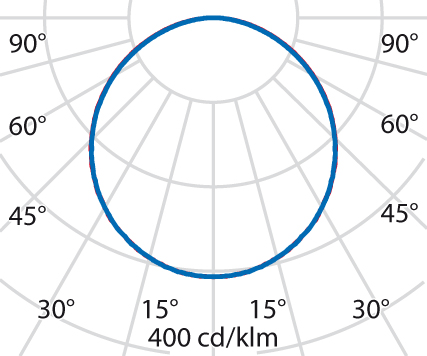

Photometric data

Photometric Lvk FL ROUND 555 PL OP 1

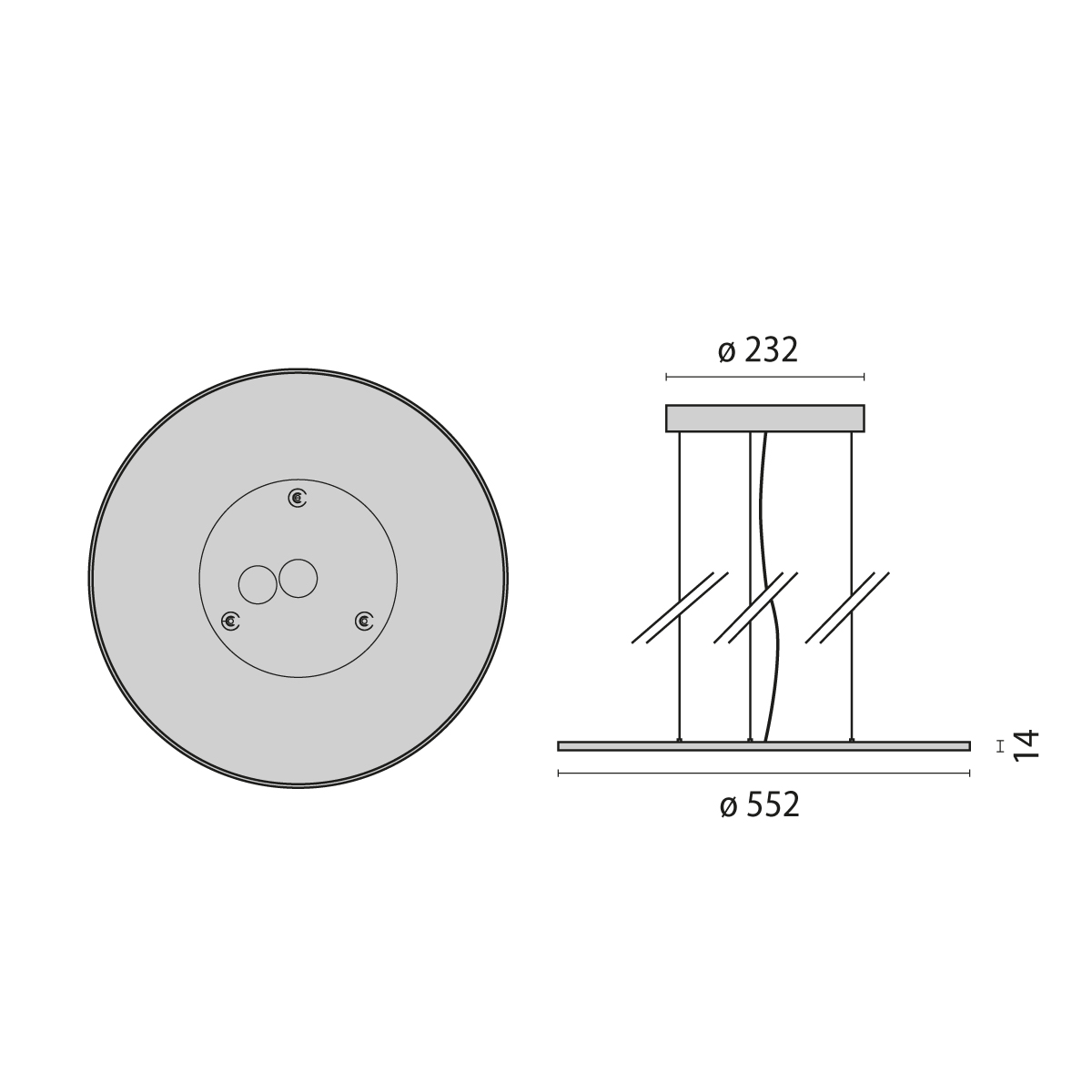

Technical drawings

Tech Design FL ROUND 555 PL OP 1++
